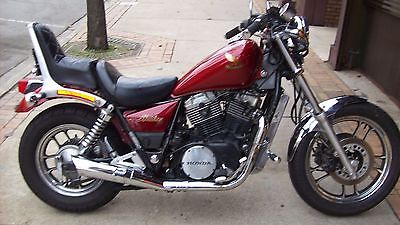

1984 Honda VT 700 C Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1984 Honda VT 700 C.

Basic Specs

Year1984
MakeHonda
ModelHonda VT 700 C
Cost

Engine

Displacement694.50 ccm (42.38 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke76.5 x 75.5 mm (3.0 x 3.0 inches)
Valves/Cylinder2
FuelingCarburettor. 36mm (1.42in) Vertical
IgnitionFull transistor ignition
ExhaustParallel stainless steel pipes
LubricationForced pressure and wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet, multi plate
Driveline

Performance

Horespower62.00 HP (45.3 kW)
Torque62.10 Nm (6.3 kgf-m or 45.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.50 litres (3.30 gallons)
Emissions

Chassis

Frame TypeDouble cradle
Rake32.0°
Trail139 mm (5.5 inches)
Front SuspensionTelescopic Fork
Front Travel145 mm (5.7 inches)
Rear SuspensionSwingarm / shock absorber
Rear Travel103 mm (4.1 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,200 mm (47.2 inches)
Total Length2,190 mm (86.2 inches)
Total Width860 mm (33.9 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,525 mm (60.0 inches)
Dry Weight211.0 kg (465.2 pounds)
Wet Weight225.0 kg (496.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/90-19 62H
Rear Tire/Tyre140/90-15 70H
Front BrakesDouble disc. 2-piston calipers
Front Brake Diameter868 mm (34.2 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter201 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VT 700 C. This Custom / cruiser model is powered by a V2, four-stroke engine with 694.50 ccm (42.38 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Carburettor. 36mm (1.42in) Vertical allowing this machine to produce its 62.00 HP (45.3 kW) horsepower and 62.10 Nm (6.3 kgf-m or 45.8 ft.lbs) torque. According to our records engine heat of the Honda VT 700 C is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/90-19 62H and the rear is 140/90-15 70H . The entire package is supported by the frame, Double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 2-piston calipers front brakes and Expanding brake (drum brake) rear brakes. The Honda VT 700 C was launched in 1984, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

90% of This is taken directly from the service manual. The number of valves per cylinder is hinted at 2 per cylinder but never stated.2-piston caliper front brakes wasn´t stated but I checked the bike itself.
