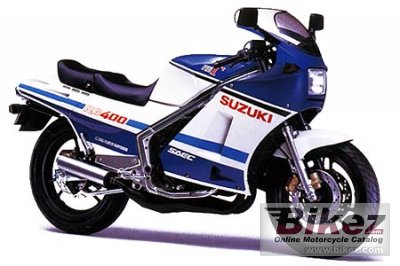

1985 Suzuki RG 400 Gamma Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1985 Suzuki RG 400 Gamma.

Basic Specs

Year1985
MakeSuzuki
ModelSuzuki RG 400 Gamma
TypeSport
Cost

Engine

Displacement397.40 ccm (24.25 cubic inches)
Type
DetailsV4, two-stroke
Max RPM10000
Compression7.0:1
Bore/Stroke50.0 x 50.6 mm (2.0 x 2.0 inches)
Valves/Cylinder1
FuelingCarburettor. Mikuni VM28SH (VM28SS), four (Flat Slide)
Ignitionelectronic SUZUKI ´PEI´ 14deg B.T.D.C.below1700rpm 26deg B.T.D.C. (2700 - 6000rpm) 11deg B.T.D.C.above9500rpm; NGK : BR9ES; 12V 14.4KC (4Ah)/10HR; Three-phase AC.; 20A
Exhaust4in4 steel pipes with expansion chambers
LubricationSuzuki ´CCI´ Oil pump injection (carbs) + Wet sump (transmission/clutch)
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutchwet 8-plate type
Driveline

Performance

Horespower59.00 HP (43.1 kW)
Torque
Top Speed205.0 km/h (127.4 mph)

Fuel Economy & Polution

Fuel Consumption9.00 litres/100 km (11.1 km/l or 26.14 mpg)
Fuel Capacity22.00 litres (5.81 gallons)
Emissions208.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Typedouble downtube, full cradle, box section aluminium perimetre frame
Rake25.5°
Trail110 mm (4.3 inches)
Front Suspension38mm Telescopic pneumatic/coil spring oil damped with posi-damp unit, adjustable anti dive valving. Spring pre-load fully adjustable
Front Travel130 mm (5.1 inches)
Rear SuspensionFull-floating suspension sytem, gas/oil damped, spring pre-load fully adjustable
Rear Travel127 mm (5.0 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,185 mm (46.7 inches)
Total Length2,100 mm (82.7 inches)
Total Width695 mm (27.4 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,425 mm (56.1 inches)
Dry Weight154.0 kg (339.5 pounds)
Wet Weight181.0 kg (399.0 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-16
Rear Tire/Tyre2.75-17
Front BrakesDouble disc. 4-piston calipers
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter210 mm (8.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki RG 400 Gamma. This Sport model is powered by a V4, two-stroke engine with 397.40 ccm (24.25 cubic inches) of actual displacement before 7.0:1 compression. Fueling is metered via Carburettor. Mikuni VM28SH (VM28SS), four (Flat Slide) allowing this machine to produce its 59.00 HP (43.1 kW) horsepower and torque. According to our records engine heat of the Suzuki RG 400 Gamma is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2.50-16 and the rear is 2.75-17 . The entire package is supported by the frame, double downtube, full cradle, box section aluminium perimetre frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston calipers front brakes and Single disc. 2-piston caliper rear brakes. The Suzuki RG 400 Gamma was launched in 1985, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
