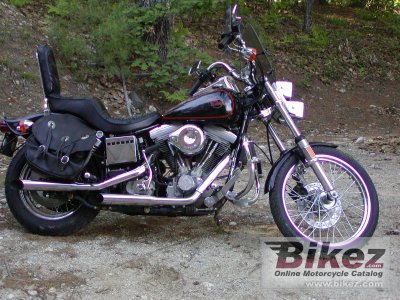

1986 Harley-Davidson FXWG Wide Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1986 Harley-Davidson FXWG Wide Glide.

Basic Specs

Year1986
MakeHarley-Davidson
ModelHarley-Davidson FXWG Wide Glide
Cost

Engine

Displacement1338.60 ccm (81.68 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke88.8 x 108.0 mm (3.5 x 4.3 inches)
Valves/Cylinder2
FuelingCarburettor
Ignitionelectronic breakerless
Exhaust
Lubricationexternal tank
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveBelt
Clutchwet
Driveline

Performance

Horespower69.00 HP (50.4 kW)
Torque111.19 Nm (11.3 kgf-m or 82.0 ft.lbs)
Top Speed164.2 km/h (102.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame Type
Rake38.0°
Trail127 mm (5.0 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height654 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,194 mm (47.0 inches)
Total Length2,362 mm (93.0 inches)
Total Width699 mm (27.5 inches)
Ground Clearance152 mm (6.0 inches)
Wheelbase1,651 mm (65.0 inches)
Dry Weight259.5 kg (572.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/TyreMH90-21
Rear Tire/TyreMT90-16
Front BrakesSingle disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXWG Wide Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1338.60 ccm (81.68 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 69.00 HP (50.4 kW) horsepower and 111.19 Nm (11.3 kgf-m or 82.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXWG Wide Glide is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MH90-21 and the rear is MT90-16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Harley-Davidson FXWG Wide Glide was launched in 1986, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

I read that the FXWG was Willie G´s first design after break away from AMF, first ´Factory Chopper´ with forward controls, 35 degree neck rake, 3 degree triple tree rake, first high handlebars from factory. 1986 last year of production, 579 total.
