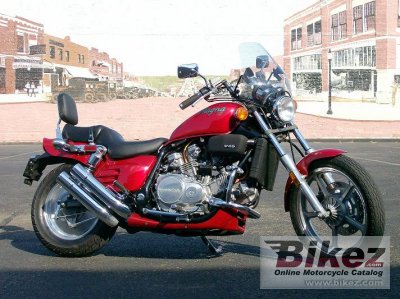

1988 Honda Magna (Supermagna) Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1988 Honda Magna (Supermagna).

Basic Specs

Year1988
MakeHonda
ModelHonda Magna (Supermagna)
Cost

Engine

Displacement748.00 ccm (45.64 cubic inches)
Type
DetailsV4, four-stroke
Max RPM10500
Compression10.5:1
Bore/Stroke
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust4 into 4 upswept pipes
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchWet Plate
Driveline

Performance

Horespower88.00 HP (64.2 kW)
Torque
Top Speed201.2 km/h (125.0 mph)

Fuel Economy & Polution

Fuel Consumption5.22 litres/100 km (19.2 km/l or 45.06 mpg)
Fuel Capacity9.84 litres (2.60 gallons)
Emissions121.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake6.0°
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight249.5 kg (550.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre150/80-15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Magna (Supermagna). This Custom / cruiser model is powered by a V4, four-stroke engine with 748.00 ccm (45.64 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 88.00 HP (64.2 kW) horsepower and torque. According to our records engine heat of the Honda Magna (Supermagna) is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 150/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda Magna (Supermagna) was launched in 1988, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
