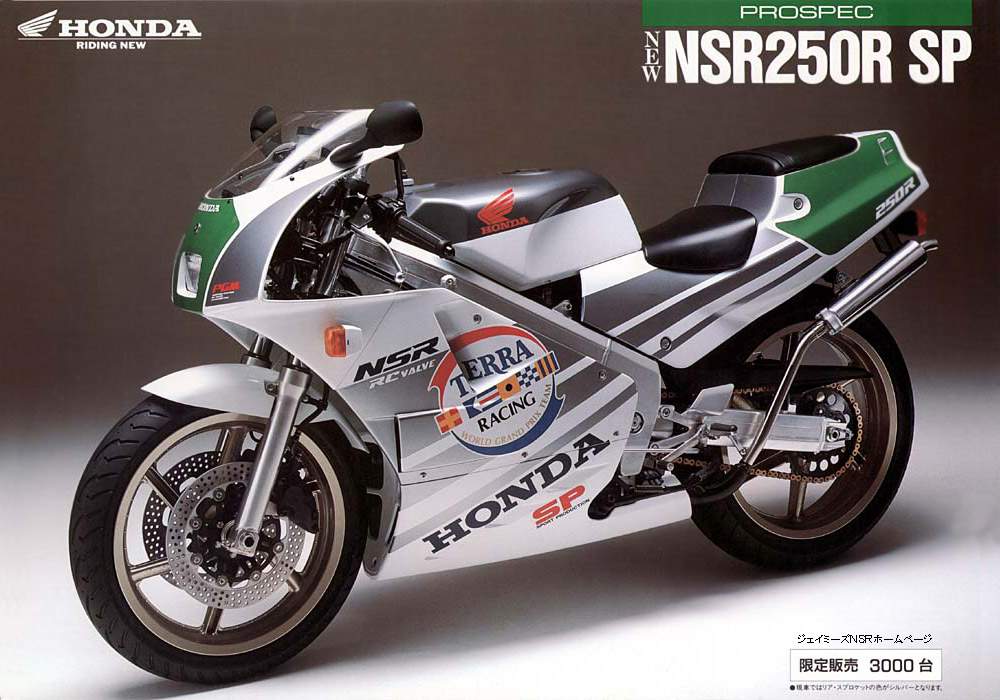

These are the known mechanical and performance specifications for your 1989 Honda NSR 250 R.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsV2, two-stroke
Max RPM13000
Compression7.3:1
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. Twin Keihin Flat slides
IgnitionCDI PGM II
ExhaustExpansion chamber, RC power valves
LubricationInjected 2-stroke oil
CoolingLiquid
Performance
Horespower45.00 HP (32.8 kW)
Torque
Top Speed209.2 km/h (130.0 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame TypeTwin spar aluminum
Rake23.0°
Trail87 mm (3.4 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,060 mm (41.7 inches)
Total Length1,980 mm (78.0 inches)
Total Width650 mm (25.6 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,345 mm (53.0 inches)
Dry Weight131.0 kg (288.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-17
Rear Tire/Tyre150/60-18
Front BrakesDouble disc. 4 piston calipers
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc. single piston caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels
