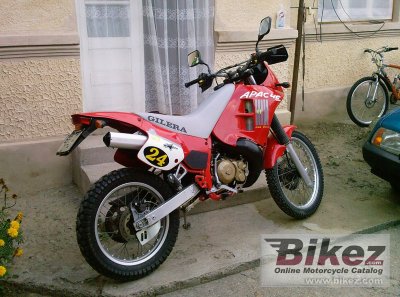

1991 Gilera Apache 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1991 Gilera Apache 125.

Basic Specs

Year1991
MakeGilera
ModelGilera Apache 125
Cost Euro 1500. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM12000
Compression12.5:1
Bore/Stroke56.0 x 50.5 mm (2.2 x 2.0 inches)
Valves/Cylinder4
FuelingCarburettor. 32mm Dell´Orto VHSA32ES
IgnitionCDI / electric and kick
Exhaustsingle aluminium pipe
Lubricationseparate oil mixing system
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutchwet multi plate
Driveline

Performance

Horespower29.30 HP (21.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed143.0 km/h (88.9 mph)

Fuel Economy & Polution

Fuel Consumption6.00 litres/100 km (16.7 km/l or 39.20 mpg)
Fuel Capacity5.00 litres (1.32 gallons)
Emissions139.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Typedual beam rectangular tube
Rake
Trail
Front Suspension43mm Kayaba
Front Travel240 mm (9.4 inches)
Rear SuspensionSwinging arm centrel damper
Rear Travel260 mm (10.2 inches)
Seat
Seat Height870 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,130 mm (83.9 inches)
Total Width830 mm (32.7 inches)
Ground Clearance395 mm (15.6 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight132.0 kg (291.0 pounds)
Wet Weight135.0 kg (297.6 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre120/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Gilera Apache 125. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor. 32mm Dell´Orto VHSA32ES allowing this machine to produce its 29.30 HP (21.4 kW) horsepower and 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) torque. According to our records engine heat of the Gilera Apache 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 120/80-18 . The entire package is supported by the frame, dual beam rectangular tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Gilera Apache 125 was launched in 1991, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
