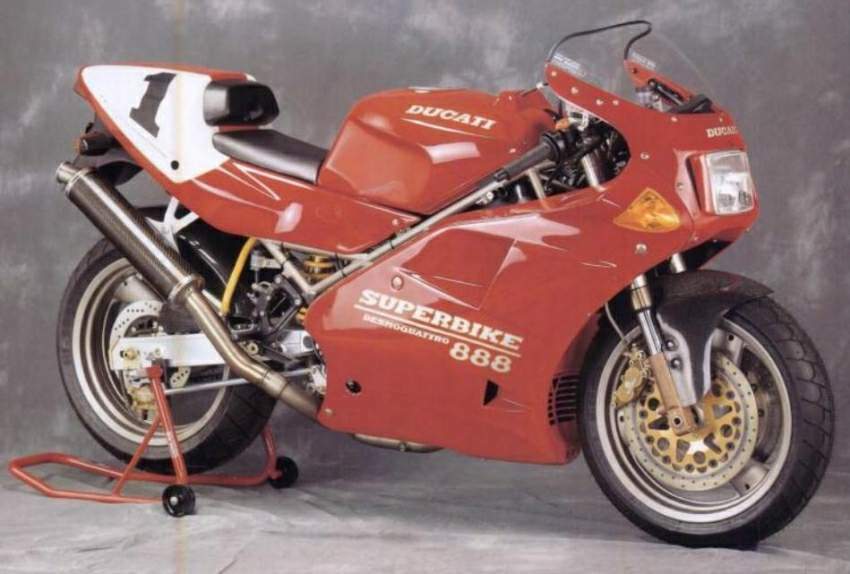

1993 Ducati 888 SP5 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1993 Ducati 888 SP5.

Basic Specs

Year1993
MakeDucati
ModelDucati 888 SP5
TypeSport
CostUS$ 28000. Euro 23000. Prices depend on country, taxes, accessories, etc.

Engine

Displacement888.00 ccm (54.19 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM11000
Compression11.0:1
Bore/Stroke94.0 x 64.0 mm (3.7 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Weber I.A.W Twin injector
IgnitionWeber I.A.W -
ExhaustDouble carbon pipes
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchDry plate
Driveline

Performance

Horespower118.00 HP (86.1 kW)
Torque88.00 Nm (9.0 kgf-m or 64.9 ft.lbs)
Top Speed260.0 km/h (161.6 mph)

Fuel Economy & Polution

Fuel Consumption5.81 litres/100 km (17.2 km/l or 40.49 mpg)
Fuel Capacity19.00 litres (5.02 gallons)
Emissions134.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular Chrom-Molybdenium steel
Rake24.0°
Trail
Front SuspensionShowa GD061-USD
Front Travel120 mm (4.7 inches)
Rear SuspensionOhlins DU8071 Monoshock
Rear Travel65 mm (2.6 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length2,000 mm (78.7 inches)
Total Width670 mm (26.4 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,430 mm (56.3 inches)
Dry Weight188.0 kg (414.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. 4-piston calipers
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati 888 SP5. This Sport model is powered by a Twin, four-stroke engine with 888.00 ccm (54.19 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. Weber I.A.W Twin injector allowing this machine to produce its 118.00 HP (86.1 kW) horsepower and 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) torque. According to our records engine heat of the Ducati 888 SP5 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular Chrom-Molybdenium steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston calipers front brakes and Single disc. 2-piston caliper rear brakes. The Ducati 888 SP5 was launched in 1993, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
