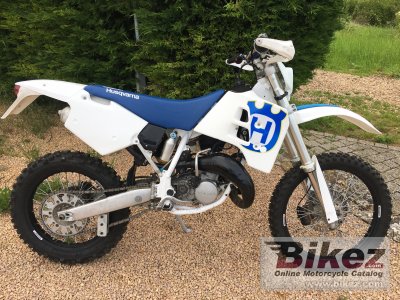

These are the known mechanical and performance specifications for your 1993 Husqvarna WR 125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.0:1
Bore/Stroke55.9 x 50.5 mm (2.2 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Ortho
IgnitionElectronic capacitor-discharge
ExhaustSingle expansion chamber
LubricationOil petrol mix
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.78 litres (1.00 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic-hydraulic upsidedown
Front Travel
Rear SuspensionSoft damp
Rear Travel
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,260 mm (49.6 inches)
Total Length2,145 mm (84.5 inches)
Total Width810 mm (31.9 inches)
Ground Clearance378 mm (14.9 inches)
Wheelbase1,460 mm (57.5 inches)
Dry Weight93.0 kg (205.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Fixed disc with hydraulic control
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
