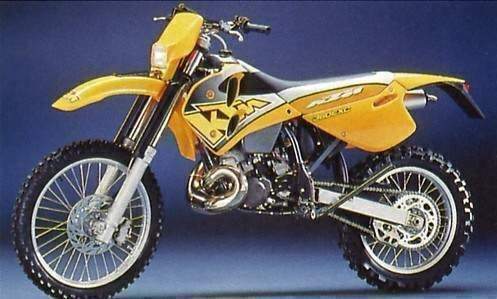

1995 KTM EXC 300 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1995 KTM EXC 300.

Basic Specs

Year1995
MakeKTM
ModelKTM EXC 300
Cost

Engine

Displacement297.00 ccm (18.12 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke69.5 x 73.0 mm (2.7 x 2.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 39
IgnitionSEM K11
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveChain
ClutchWet Plate
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeCrMo steel
Rake62.5°
Trail
Front Suspension
Front Travel300 mm (11.8 inches)
Rear SuspensionMonoshock
Rear Travel320 mm (12.6 inches)
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight112.0 kg (246.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front Brakes
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Single piston caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM EXC 300. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 297.00 ccm (18.12 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Keihin PWK 39 allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM EXC 300 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 140/80-18 . The entire package is supported by the frame, CrMo steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on front brakes and Single disc. Single piston caliper rear brakes. The KTM EXC 300 was launched in 1995, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
