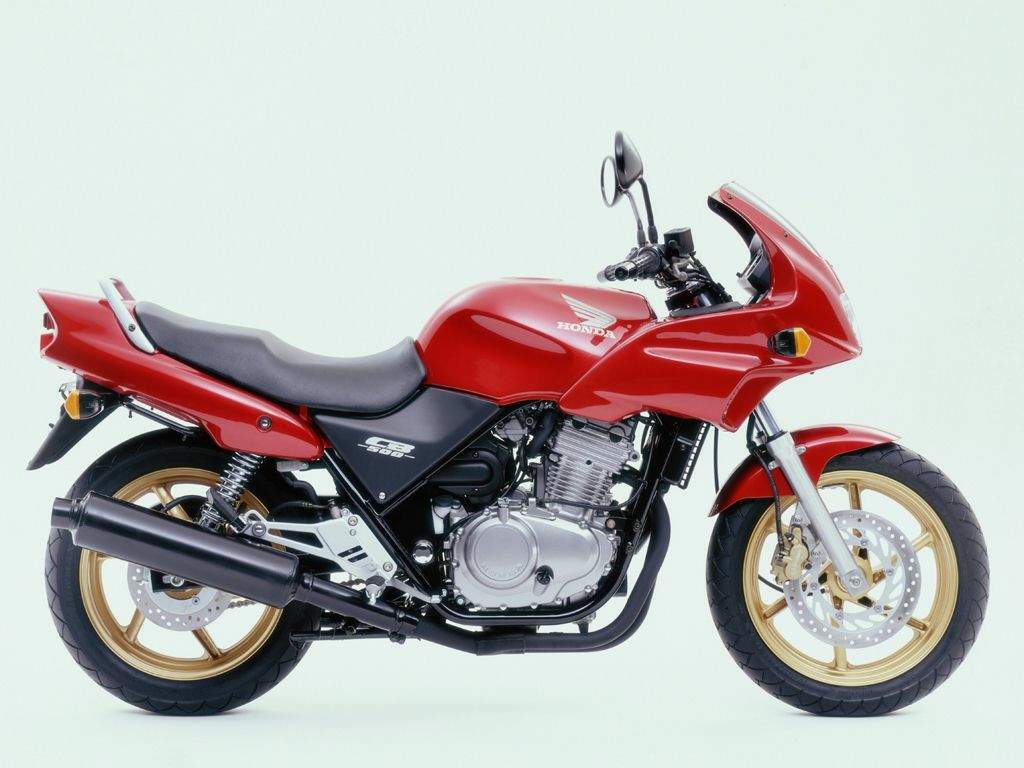

1999 Honda CB 500 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 1999 Honda CB 500 S.

Basic Specs

Year1999
MakeHonda
ModelHonda CB 500 S
Cost

Engine

Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke73.0 x 59.6 mm (2.9 x 2.3 inches)
Valves/Cylinder4
Fueling
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower57.00 HP (41.6 kW)
Torque47.00 Nm (4.8 kgf-m or 34.7 ft.lbs)
Top Speed179.0 km/h (111.2 mph)

Fuel Economy & Polution

Fuel Consumption0.58 litres/100 km (172.4 km/l or 405.55 mpg)
Fuel Capacity18.00 litres (4.76 gallons)
Emissions13.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel130 mm (5.1 inches)
Rear Suspension
Rear Travel117 mm (4.6 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,435 mm (56.5 inches)
Dry Weight
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-17
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CB 500 S. This Sport touring model is powered by a Twin, four-stroke engine with 499.00 ccm (30.45 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via allowing this machine to produce its 57.00 HP (41.6 kW) horsepower and 47.00 Nm (4.8 kgf-m or 34.7 ft.lbs) torque. According to our records engine heat of the Honda CB 500 S is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-17 and the rear is 130/80-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CB 500 S was launched in 1999, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
