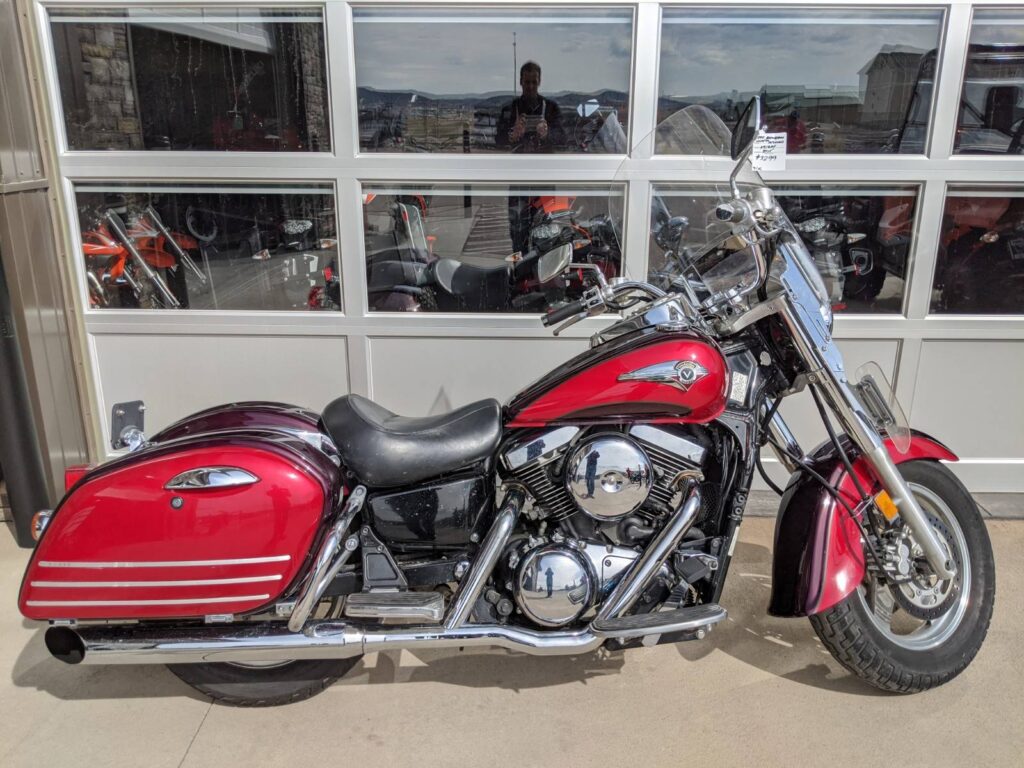

These are the known mechanical and performance specifications for your 1999 Kawasaki Vulcan 1500 Nomad.
Basic Specs
Engine
Displacement1470.00 ccm (89.70 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression8.6:1
Bore/Stroke102.0 x 90.0 mm (4.0 x 3.5 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionElectric
ExhaustDouble chrome pipes
LubricationWet Sump
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchWet plate, multiple
Driveline
Fuel Economy & Polution
Fuel Consumption6.75 litres/100 km (14.8 km/l or 34.85 mpg)
Fuel Capacity15.89 litres (4.20 gallons)
Emissions156.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeSteel
Rake32.0°
Trail188 mm (7.4 inches)
Front Suspension41mm stanchions
Front Travel150 mm (5.9 inches)
Rear Suspensiondual dampers, adjustable for air-pressure, rebound damping
Rear Travel99 mm (3.9 inches)
Seat
Seat Height719 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,510 mm (98.8 inches)
Total Width826 mm (32.5 inches)
Ground Clearance
Wheelbase1,666 mm (65.6 inches)
Dry Weight
Wet Weight351.5 kg (775.0 pounds)
Wheels & Brakes
Front Tire/Tyre150/80-19 71H
Rear Tire/Tyre150/80-19 71H
Front BrakesDouble disc. Single-action, twin-piston calipers
Front Brake Diameter279 mm (11.0 inches)
Rear BrakesSingle disc. Single-action
Rear Brake Diameter318 mm (12.5 inches)
Wheels
