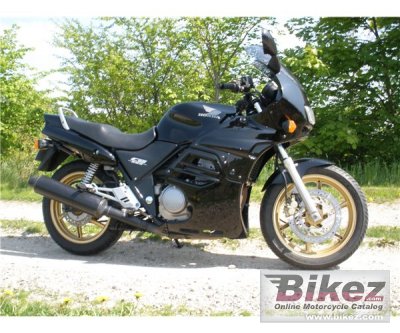

2001 Honda CB 500 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2001 Honda CB 500.

Basic Specs

Year2001
MakeHonda
ModelHonda CB 500
Cost

Engine

Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression
Bore/Stroke73.0 x 59.6 mm (2.9 x 2.3 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower57.00 HP (41.6 kW)
Torque46.00 Nm (4.7 kgf-m or 33.9 ft.lbs)
Top Speed179.0 km/h (111.2 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel115 mm (4.5 inches)
Rear Suspension
Rear Travel117 mm (4.6 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,435 mm (56.5 inches)
Dry Weight173.0 kg (381.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/80-H17
Rear Tire/Tyre130/80-H17
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CB 500. This Allround model is powered by a Twin, four-stroke engine with 499.00 ccm (30.45 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 57.00 HP (41.6 kW) horsepower and 46.00 Nm (4.7 kgf-m or 33.9 ft.lbs) torque. According to our records engine heat of the Honda CB 500 is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-H17 and the rear is 130/80-H17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CB 500 was launched in 2001, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
