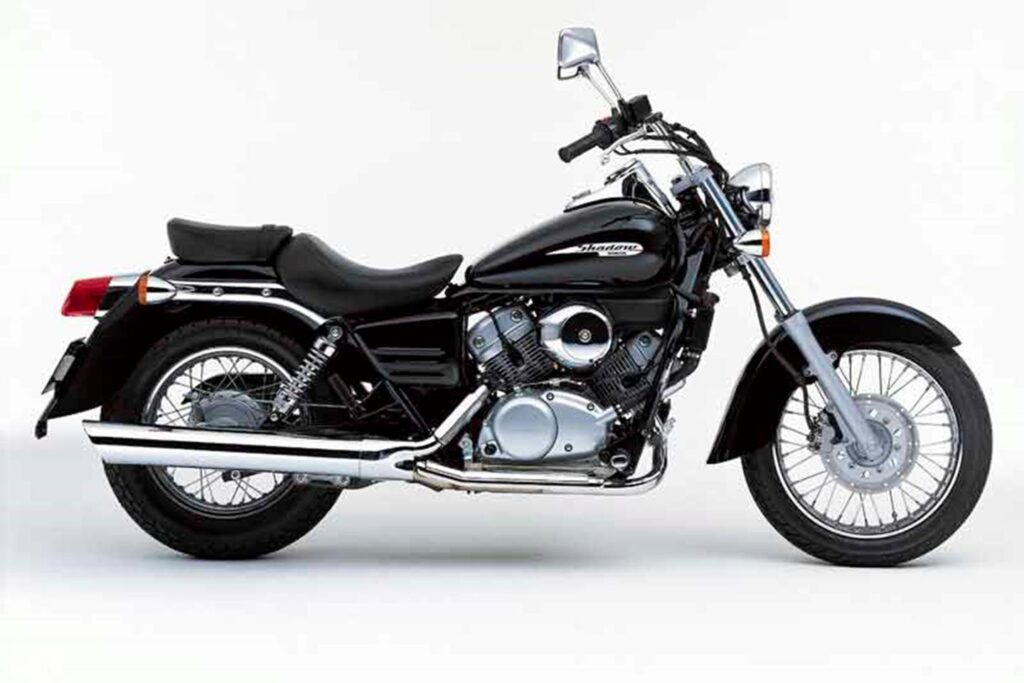

2001 Honda VT 125 C Shadow Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2001 Honda VT 125 C Shadow.

Basic Specs

Year2001
MakeHonda
ModelHonda VT 125 C Shadow
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke42.0 x 45.0 mm (1.7 x 1.8 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower15.00 HP (10.9 kW)
Torque10.70 Nm (1.1 kgf-m or 7.9 ft.lbs)
Top Speed111.0 km/h (69.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel110 mm (4.3 inches)
Rear Suspension
Rear Travel80 mm (3.1 inches)
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,524 mm (60.0 inches)
Dry Weight145.0 kg (319.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-17
Rear Tire/Tyre130/90-15
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VT 125 C Shadow. This Custom / cruiser model is powered by a V2, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 15.00 HP (10.9 kW) horsepower and 10.70 Nm (1.1 kgf-m or 7.9 ft.lbs) torque. According to our records engine heat of the Honda VT 125 C Shadow is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-17 and the rear is 130/90-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake rear brakes. The Honda VT 125 C Shadow was launched in 2001, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
