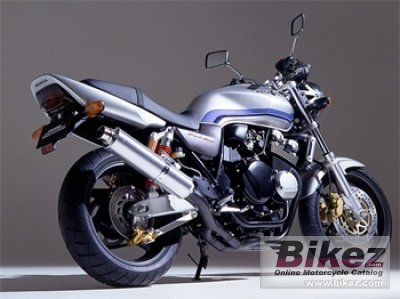

2002 Honda CB 400 Super Four Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2002 Honda CB 400 Super Four.

Basic Specs

Year2002
MakeHonda
ModelHonda CB 400 Super Four
Cost

Engine

Displacement399.00 ccm (24.35 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke55.0 x 42.0 mm (2.2 x 1.7 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower53.00 HP (38.7 kW)
Torque38.00 Nm (3.9 kgf-m or 28.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.00 litres (4.76 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length2,050 mm (80.7 inches)
Total Width725 mm (28.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,415 mm (55.7 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-ZR17 55W
Rear Tire/Tyre160/60-ZR17 69W
Front BrakesDual disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CB 400 Super Four. This Naked bike model is powered by a In-line four, four-stroke engine with 399.00 ccm (24.35 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 53.00 HP (38.7 kW) horsepower and 38.00 Nm (3.9 kgf-m or 28.0 ft.lbs) torque. According to our records engine heat of the Honda CB 400 Super Four is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/60-ZR17 55W and the rear is 160/60-ZR17 69W . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Dual disc front brakes and Single disc rear brakes. The Honda CB 400 Super Four was launched in 2002, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
