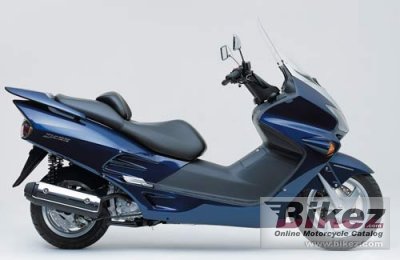

2002 Honda Jazz 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2002 Honda Jazz 250.

Basic Specs

Year2002
MakeHonda
ModelHonda Jazz 250
Cost

Engine

Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke72.7 x 60.0 mm (2.9 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

GearboxAutomatic
Final Drive
Clutch
Driveline

Performance

Horespower19.30 HP (14.1 kW)
Torque20.60 Nm (2.1 kgf-m or 15.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel96 mm (3.8 inches)
Rear Suspension
Rear Travel120 mm (4.7 inches)
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,360 mm (53.5 inches)
Total Length2,210 mm (87.0 inches)
Total Width760 mm (29.9 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,545 mm (60.8 inches)
Dry Weight159.0 kg (350.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-13M/C 56L (tubel
Rear Tire/Tyre130/70-12 62L (tubeless
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Jazz 250. This Scooter model is powered by a Single cylinder, four-stroke engine with 249.00 ccm (15.19 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 19.30 HP (14.1 kW) horsepower and 20.60 Nm (2.1 kgf-m or 15.2 ft.lbs) torque. According to our records engine heat of the Honda Jazz 250 is moderated by . You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/90-13M/C 56L (tubel and the rear is 130/70-12 62L (tubeless . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda Jazz 250 was launched in 2002, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
