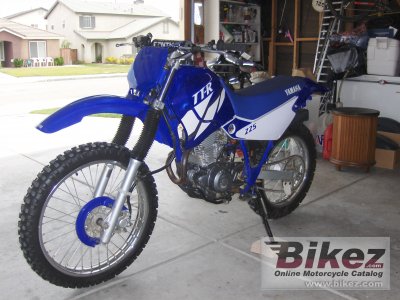

These are the known mechanical and performance specifications for your 2002 Yamaha TT-R 225.
Basic Specs
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke70.0 x 58.0 mm (2.8 x 2.3 inches)
Valves/Cylinder2
FuelingCarburettor. 40 mm Mikuni CV with throttle position sensor
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque17.70 Nm (1.8 kgf-m or 13.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionSingle shock
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,070 mm (81.5 inches)
Total Width820 mm (32.3 inches)
Ground Clearance
Wheelbase1,350 mm (53.1 inches)
Dry Weight118.0 kg (260.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-18
Rear Tire/Tyre100/100-18
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
