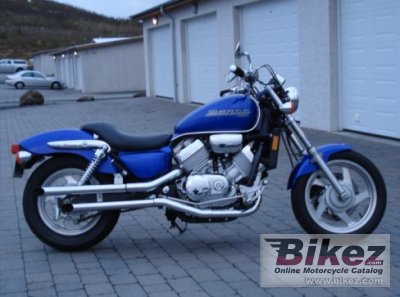

2003 Honda VF 750 Magna Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2003 Honda VF 750 Magna.

Basic Specs

Year2003
MakeHonda
ModelHonda VF 750 Magna
CostUS$ 7499. Prices depend on country, taxes, accessories, etc.

Engine

Displacement748.00 ccm (45.64 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke70.0 x 48.6 mm (2.8 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor. 4 - 34 mm CV Keihin
IgnitionDigital
Exhaust4 into 4 Chrome
LubricationWet Sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet, Multiplate Clutch
Driveline

Performance

Horespower78.20 HP (57.1 kW)
Torque65.00 Nm (6.6 kgf-m or 47.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.19 litres/100 km (16.2 km/l or 38.00 mpg)
Fuel Capacity13.62 litres (3.60 gallons)
Emissions143.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail132 mm (5.2 inches)
Front SuspensionCartridge Fork
Front Travel41 mm (1.6 inches)
Rear SuspensionDual Shocks
Rear Travel99 mm (3.9 inches)
Seat
Seat Height711 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,362 mm (93.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1,651 mm (65.0 inches)
Dry Weight229.1 kg (505.0 pounds)
Wet Weight244.0 kg (538.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/80-17
Rear Tire/Tyre150/80-17
Front BrakesSingle disc. 2-Piston caliper
Front Brake Diameter315 mm (12.4 inches)
Rear BrakesExpanding brake (drum brake). Single, Leading-Shoe Drum
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda VF 750 Magna. This Custom / cruiser model is powered by a V4, four-stroke engine with 748.00 ccm (45.64 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Carburettor. 4 - 34 mm CV Keihin allowing this machine to produce its 78.20 HP (57.1 kW) horsepower and 65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) torque. According to our records engine heat of the Honda VF 750 Magna is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/80-17 and the rear is 150/80-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-Piston caliper front brakes and Expanding brake (drum brake). Single, Leading-Shoe Drum rear brakes. The Honda VF 750 Magna was launched in 2003, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
