These are the known mechanical and performance specifications for your 2004 Ducati Monster S4 R.
Basic Specs
Engine
Displacement996.00 ccm (60.78 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke98.0 x 66.0 mm (3.9 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower113.00 HP (82.5 kW)
Torque95.50 Nm (9.7 kgf-m or 70.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions
Chassis
Frame TypeTubular steel trellis
Rake24.0°
Trail
Front SuspensionShowa 43 mm fully adjustable upside-down fork with TiN surface treatment
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with Showa fully adjustable monoshock. Aluminium single-sided swingarm
Rear Travel148 mm (5.8 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,222 mm (48.1 inches)
Total Length2,121 mm (83.5 inches)
Total Width
Ground Clearance
Wheelbase1,440 mm (56.7 inches)
Dry Weight
Wet Weight193.0 kg (425.5 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter230 mm (9.1 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels
Comments

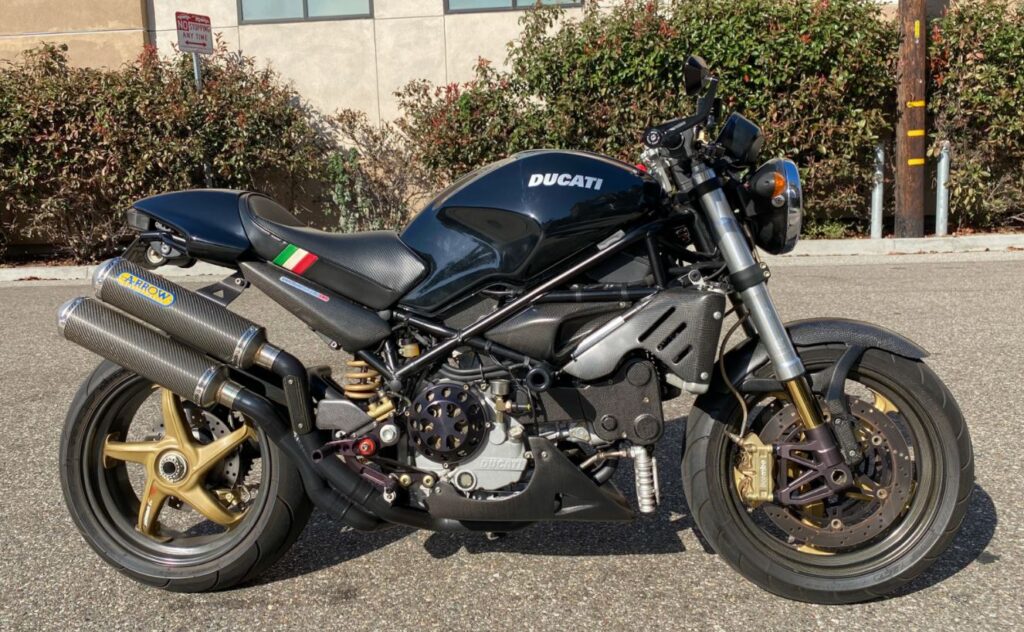

The S4R is the top of the range Monster - the most powerful, highest-performance Monster ever. It all starts with the 996 cc Superbike engine and lightweight Superbike-derived trellis frame to ensure the perfect combination of power and handling. A Showa fully-adjustable front fork with low friction TiN treatment and a fully-adjustable Showa rear shock handle suspension duties.
