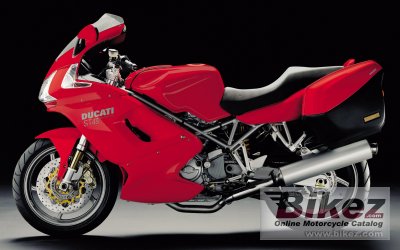

2004 Ducati ST 4 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Ducati ST 4 S.

Basic Specs

Year2004
MakeDucati
ModelDucati ST 4 S
Cost

Engine

Displacement996.00 ccm (60.78 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke98.0 x 66.0 mm (3.9 x 2.6 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower117.00 HP (85.4 kW)
Torque98.00 Nm (10.0 kgf-m or 72.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.00 litres (5.55 gallons)
Emissions

Chassis

Frame TypeTubular steel trellis
Rake24.0°
Trail
Front SuspensionShowa 43 mm adjustable preload upside-down fork with Tin
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with fully adjustable Ohlins monoshock with remote control preload adjustable. Aluminium swingarm.
Rear Travel148 mm (5.8 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,274 mm (50.2 inches)
Total Length2,070 mm (81.5 inches)
Total Width
Ground Clearance
Wheelbase1,430 mm (56.3 inches)
Dry Weight
Wet Weight212.0 kg (467.4 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati ST 4 S. This Sport touring model is powered by a V2, four-stroke engine with 996.00 ccm (60.78 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 117.00 HP (85.4 kW) horsepower and 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) torque. According to our records engine heat of the Ducati ST 4 S is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular steel trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Ducati ST 4 S was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
