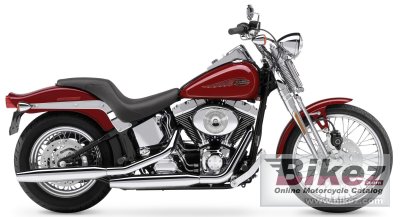

These are the known mechanical and performance specifications for your 2004 Harley-Davidson FXSTSI Springer Softail.
Basic Specs
![](/motobrands/Harley-Davidson.png)
Engine
Displacement1449.00 ccm (88.42 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque102.00 Nm (10.4 kgf-m or 75.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail135 mm (5.3 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height640 mm (25.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,375 mm (93.5 inches)
Total Width
Ground Clearance137 mm (5.4 inches)
Wheelbase1,660 mm (65.4 inches)
Dry Weight302.0 kg (665.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre150/80-16
Front BrakesSingle disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Black powder-coated engine with chrome covers; chrome Springer front forks; Badlander style seat; chrome tank console, rear fender supports, air cleaner, and oil tank; new low-rise handlebars; bobtail fender
