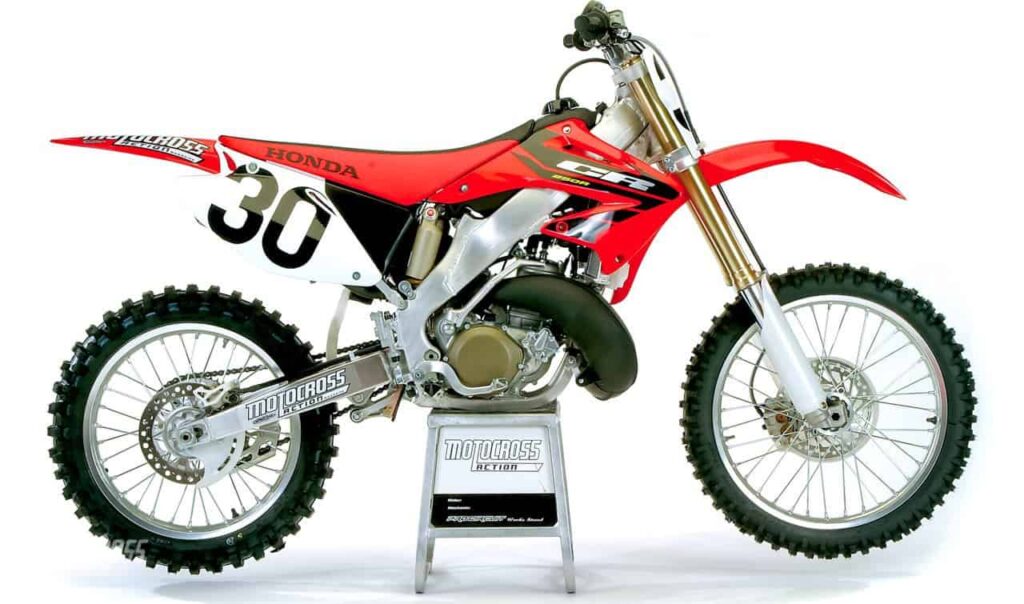

These are the known mechanical and performance specifications for your 2004 Honda CR 250 R.
Basic Specs
Engine
Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression9.1:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.57 litres (2.00 gallons)
Emissions
Chassis
Frame Type
Rake29.5°
Trail101 mm (4.0 inches)
Front Suspension46mm inverted Kayaba cartridge fork with 18-position rebound- and 20-position compression-damping adjustability.
Front Travel305 mm (12.0 inches)
Rear SuspensionPro-Link Kayaba single-shock with spring-preload, 30-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (18 positions) and high-speed (2 turns).
Rear Travel318 mm (12.5 inches)
Seat
Seat Height947 mm (37.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,460 mm (57.5 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
Model id CR125R.
