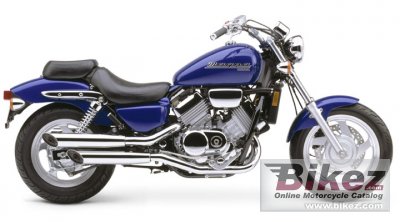

These are the known mechanical and performance specifications for your 2004 Honda VF 750 Magna.
Basic Specs


Year2004
MakeHonda
ModelHonda VF 750 Magna
TypeCustom / cruiser
CostUS$ 7499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement748.00 ccm (45.64 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke70.0 x 48.6 mm (2.8 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.62 litres (3.60 gallons)
Emissions
Chassis
Frame Type
Rake32.6°
Trail161 mm (6.3 inches)
Front Suspension41mm cartridge fork; 5.9-inch travel
Front Travel
Rear SuspensionDual shocks with five-position spring-preload adjustability; 3.9-inch travel
Rear Travel
Seat
Seat Height711 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,651 mm (65.0 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/80-17
Rear Tire/Tyre150/80-15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
