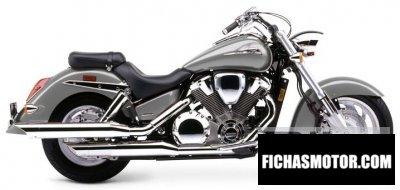

These are the known mechanical and performance specifications for your 2004 Honda VTX 1800 Retro Cast.
Basic Specs
Year2004
MakeHonda
ModelHonda VTX 1800 Retro Cast
TypeCustom / cruiser
CostUS$ 12999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1795.00 ccm (109.53 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke101.0 x 112.0 mm (4.0 x 4.4 inches)
Valves/Cylinder3
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail
Front Suspension45mm inverted fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel99 mm (3.9 inches)
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,456 mm (96.7 inches)
Total Width
Ground Clearance
Wheelbase1,715 mm (67.5 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre150/80-R17
Rear Tire/Tyre180/70-R16
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels
Comments
Specifications will vary according to Style and BuildSpec options selected.
