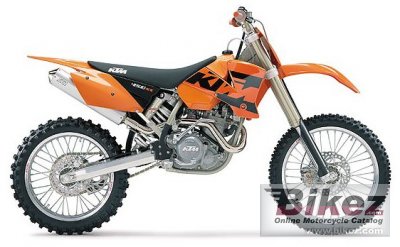

These are the known mechanical and performance specifications for your 2004 KTM 450 SX Racing.
Basic Specs
Engine
Displacement449.39 ccm (27.42 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke95.0 x 63.4 mm (3.7 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame TypeChromium molybdenum
Rake24.0°
Trail64 mm (2.5 inches)
Front SuspensionWP-USD 48/26 MA/PA
Front Travel
Rear SuspensionWP-PDS-DA shock absorber
Rear Travel
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height675 mm (26.6 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width450 mm (17.7 inches)
Ground Clearance380 mm (15.0 inches)
Wheelbase1,481 mm (58.3 inches)
Dry Weight104.9 kg (231.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter216 mm (8.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels
Comments
