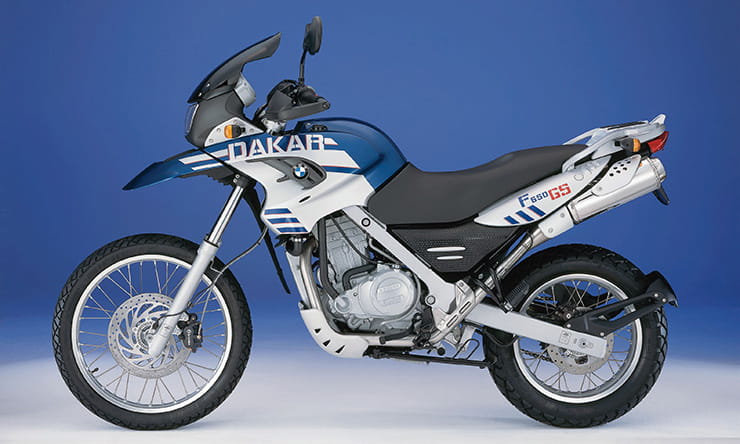

2005 BMW F 650 GS Dakar Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 BMW F 650 GS Dakar.

Basic Specs

Year2005
MakeBMW
ModelBMW F 650 GS Dakar
Cost

Engine

Displacement652.00 ccm (39.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingInjection. Electronic intake pipe injection / BMW engine management, dual igntion
Ignition
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchMultiple-disc clutch in oil-bath, mechanically operated
Driveline

Performance

Horespower49.61 HP (36.2 kW)
Torque60.00 Nm (6.1 kgf-m or 44.3 ft.lbs)
Top Speed170.0 km/h (105.6 mph)

Fuel Economy & Polution

Fuel Consumption3.20 litres/100 km (31.3 km/l or 73.51 mpg)
Fuel Capacity17.30 litres (4.57 gallons)
Emissions74.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeBridge-type steel section frame with bolted-on rear section
Rake29.2°
Trail123 mm (4.9 inches)
Front SuspensionTelescopic fork, stanchion diameter 41 mm, fork stabiliser
Front Travel41 mm (1.6 inches)
Rear SuspensionBox-section steel section dual swing arm, central spring strut action via lever system, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable
Rear Travel135 mm (5.3 inches)
Seat
Seat Height870 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,265 mm (49.8 inches)
Total Length2,189 mm (86.2 inches)
Total Width910 mm (35.8 inches)
Ground Clearance
Wheelbase1,489 mm (58.6 inches)
Dry Weight177.2 kg (390.7 pounds)
Wet Weight193.0 kg (425.5 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-S21
Rear Tire/Tyre130/80-S17
Front BrakesDouble disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW F 650 GS Dakar. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 652.00 ccm (39.79 cubic inches) of actual displacement before 11.5:1 compression. Fueling is metered via Injection. Electronic intake pipe injection / BMW engine management, dual igntion allowing this machine to produce its 49.61 HP (36.2 kW) horsepower and 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) torque. According to our records engine heat of the BMW F 650 GS Dakar is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-S21 and the rear is 130/80-S17 . The entire package is supported by the frame, Bridge-type steel section frame with bolted-on rear section. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW F 650 GS Dakar was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Disengageable ABS brakes.
