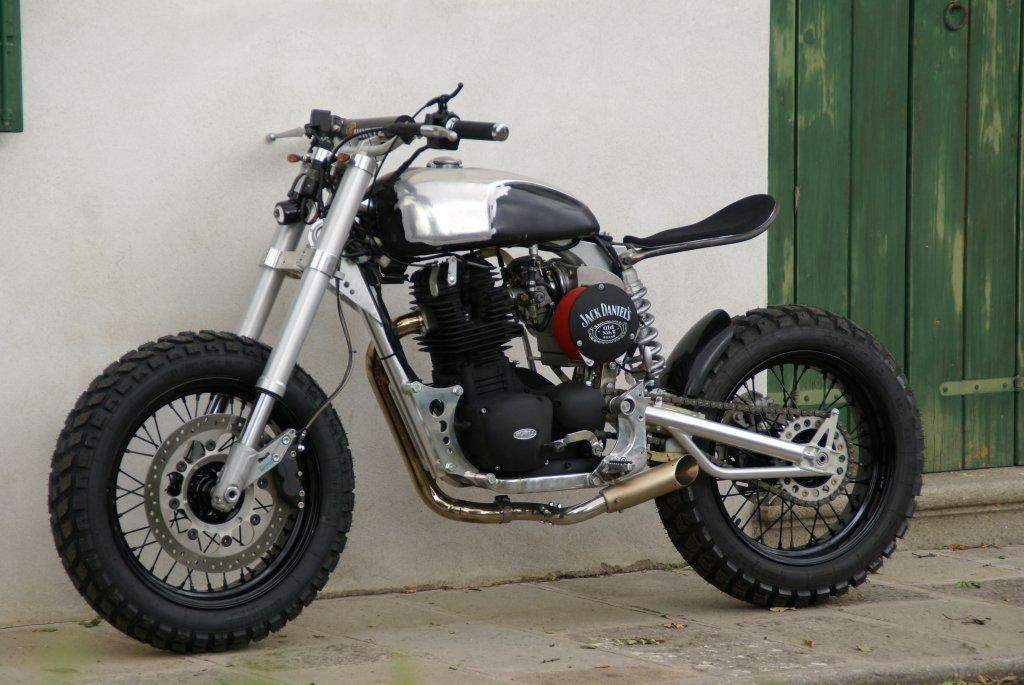

These are the known mechanical and performance specifications for your 2005 Borile B 500 CR Cafe Racer.
Basic Specs
Engine
Displacement487.00 ccm (29.72 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke87.0 x 82.0 mm (3.4 x 3.2 inches)
Valves/Cylinder4
FuelingCarburettor. Mikuni TM Ø36
IgnitionElectronic
Exhaust
LubricationPump
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 gallons)
Emissions
Chassis
Frame TypeLight alloy 40 mm tubular cradle
Rake
Trail
Front SuspensionCeriani upside down 41 mm fork
Front Travel
Rear SuspensionPaioli monoshock.
Rear Travel
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight117.0 kg (257.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter315 mm (12.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
