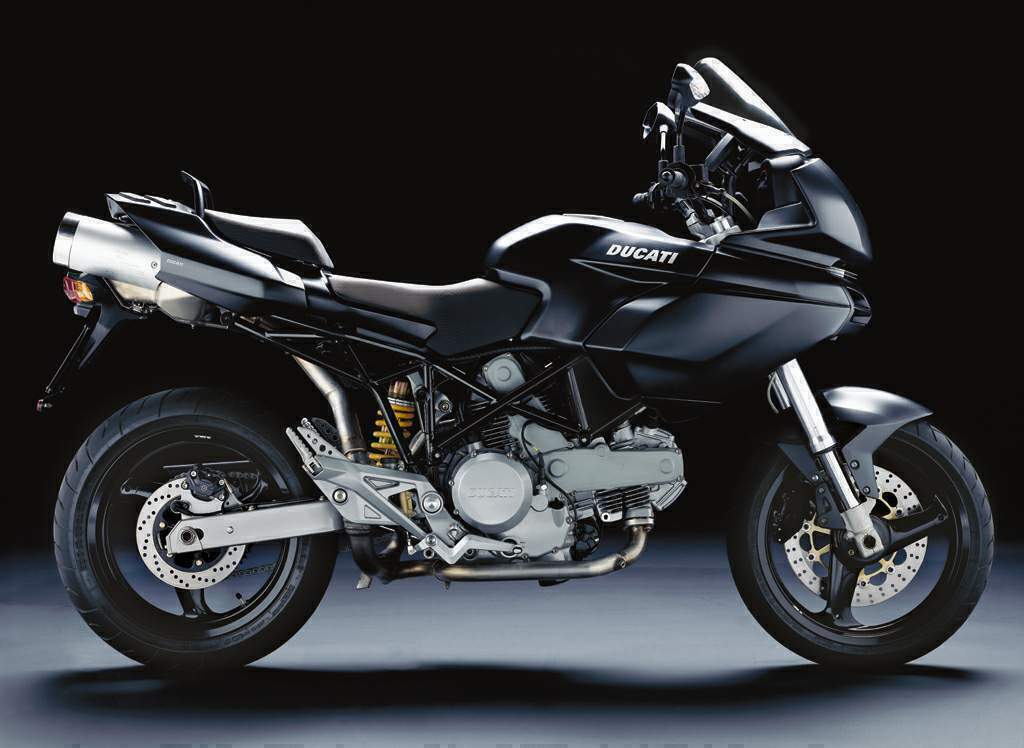

2005 Ducati Multistrada 620 Dark Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Ducati Multistrada 620 Dark.

Basic Specs

Year2005
MakeDucati
ModelDucati Multistrada 620 Dark
Cost

Engine

Displacement618.00 ccm (37.71 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke80.0 x 61.5 mm (3.1 x 2.4 inches)
Valves/Cylinder2
FuelingInjection. Marelli electronic fuel injection, 45 mm throttle body
Ignition
ExhaustSingle steel muffler and pipe system with catalytic converter
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchAPTC wet multiplate with hydraulic control
Driveline

Performance

Horespower46.40 HP (33.9 kW)
Torque57.00 Nm (5.8 kgf-m or 42.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.00 litres (3.96 gallons)
Emissions

Chassis

Frame TypeTubular steel trellis
Rake24.0°
Trail
Front SuspensionMarzocchi 43 mm upside-down fork
Front Travel130 mm (5.1 inches)
Rear SuspensionProgressive linkage with adjustable Sachs monoshock. Steel double-sided swingarm
Rear Travel148 mm (5.8 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,459 mm (57.4 inches)
Dry Weight183.0 kg (403.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati Multistrada 620 Dark. This Allround model is powered by a V2, four-stroke engine with 618.00 ccm (37.71 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Injection. Marelli electronic fuel injection, 45 mm throttle body allowing this machine to produce its 46.40 HP (33.9 kW) horsepower and 57.00 Nm (5.8 kgf-m or 42.0 ft.lbs) torque. According to our records engine heat of the Ducati Multistrada 620 Dark is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/60-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Tubular steel trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Ducati Multistrada 620 Dark was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
