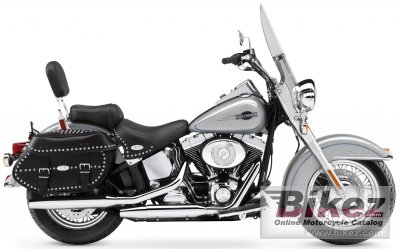

These are the known mechanical and performance specifications for your 2005 Harley-Davidson FLSTCI Heritage Softail Classic.
Basic Specs
Year2005
MakeHarley-Davidson
ModelHarley-Davidson FLSTCI Heritage Softail Classic
TypeCustom / cruiser
Cost
Engine
Displacement1449.00 ccm (88.42 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI )
Ignition
ExhaustStaggered shorty duals
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveBelt
ClutchMulti-plate clutch with diaphragm spring in oil bath
Driveline
Performance
Horespower
Torque102.00 Nm (10.4 kgf-m or 75.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame Type
Rake32.0°
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,391 mm (94.1 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,630 mm (64.2 inches)
Dry Weight322.0 kg (709.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMT90-B16
Rear Tire/Tyre150/80-B16
Front BrakesDouble disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
