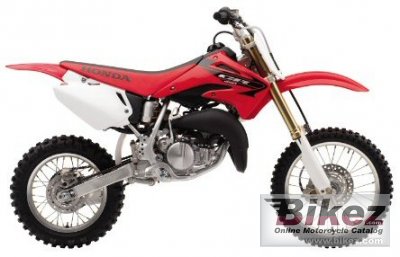

These are the known mechanical and performance specifications for your 2005 Honda CR 85 R.
Basic Specs
Engine
Displacement84.70 ccm (5.17 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.4:1
Bore/Stroke47.5 x 47.8 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. 38.0mm Mikuni TMX with throttle position sensor (TPS)
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.10 litres (1.35 gallons)
Emissions
Chassis
Frame Type
Rake26.5°
Trail77 mm (3.0 inches)
Front Suspension37mm fully adjustable leading-axle inverted Showa cartridge fork
Front Travel274 mm (10.8 inches)
Rear SuspensionPro-Link fully adjustable Showa single-shock;
Rear Travel274 mm (10.8 inches)
Seat
Seat Height823 mm (32.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance310 mm (12.2 inches)
Wheelbase1,247 mm (49.1 inches)
Dry Weight65.3 kg (144.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/70-17
Rear Tire/Tyre90/90-14
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
Model ID: CR85R
