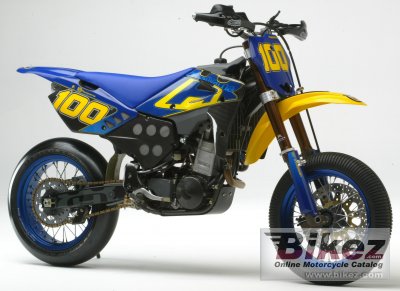

2005 Husqvarna SMR 630 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Husqvarna SMR 630.

Basic Specs

Year2005
MakeHusqvarna
ModelHusqvarna SMR 630
Cost

Engine

Displacement633.61 ccm (38.66 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke98.0 x 84.0 mm (3.9 x 3.3 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionAnalogic
Exhaust
LubricationForced lubrification with double pump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate type; mechanic control
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame TypeSteel single tube cradle (round tubes);rear frame in light alloy
Rake
Trail
Front SuspensionMarzocchi 45mm, upside-down telescopic hydraulic fork with advanced axle
Front Travel260 mm (10.2 inches)
Rear SuspensionProgressive
Rear Travel290 mm (11.4 inches)
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,240 mm (48.8 inches)
Total Length2,083 mm (82.0 inches)
Total Width840 mm (33.1 inches)
Ground Clearance240 mm (9.4 inches)
Wheelbase1,500 mm (59.1 inches)
Dry Weight
Wet Weight148.3 kg (326.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-,17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Husqvarna SMR 630. This Super motard model is powered by a Single cylinder, four-stroke engine with 633.61 ccm (38.66 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Husqvarna SMR 630 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-,17 and the rear is 150/60-17 . The entire package is supported by the frame, Steel single tube cradle (round tubes);rear frame in light alloy. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Husqvarna SMR 630 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
