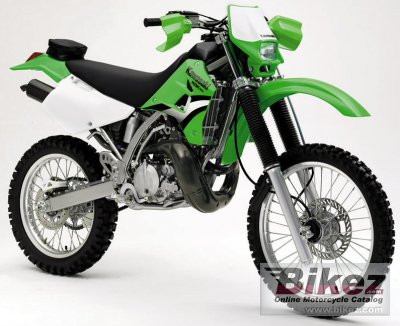

These are the known mechanical and performance specifications for your 2005 Kawasaki KDX 200.
Basic Specs
Year2005
MakeKawasaki
ModelKawasaki KDX 200
TypeEnduro / offroad
CostUS$ 4099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement198.00 ccm (12.08 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression7.9:1
Bore/Stroke66.0 x 58.0 mm (2.6 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK35
IgnitionElectronic CDI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.97 litres (2.90 gallons)
Emissions
Chassis
Frame TypeHigh-tensile steel perimeter design
Rake26.5°
Trail
Front Suspension43mm conventional cartridge fork
Front Travel
Rear SuspensionUNI-TRAK® single-shock system
Rear Travel
Seat
Seat Height919 mm (36.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,229 mm (48.4 inches)
Total Length
Total Width889 mm (35.0 inches)
Ground Clearance340 mm (13.4 inches)
Wheelbase1,435 mm (56.5 inches)
Dry Weight101.0 kg (222.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre100/80-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
