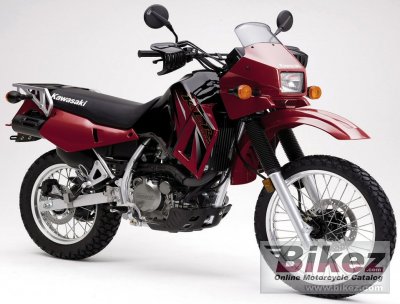

2005 Kawasaki KLR 650 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Kawasaki KLR 650.

Basic Specs

Year2005
MakeKawasaki
ModelKawasaki KLR 650
CostUS$ 5099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement651.00 ccm (39.72 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor. Keihin CVK40
IgnitionElectronic CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.08 litres (6.10 gallons)
Emissions

Chassis

Frame TypeSemi-double cradle, high-tensile steel
Rake28.0°
Trail
Front Suspension38mm leading axle, air-adjustable fork
Front Travel
Rear SuspensionUNI-TRAK® single-shock system
Rear Travel
Seat
Seat Height889 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,346 mm (53.0 inches)
Total Length
Total Width940 mm (37.0 inches)
Ground Clearance239 mm (9.4 inches)
Wheelbase1,496 mm (58.9 inches)
Dry Weight152.9 kg (337.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLR 650. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 651.00 ccm (39.72 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin CVK40 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLR 650 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 130/80-17 . The entire package is supported by the frame, Semi-double cradle, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki KLR 650 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
