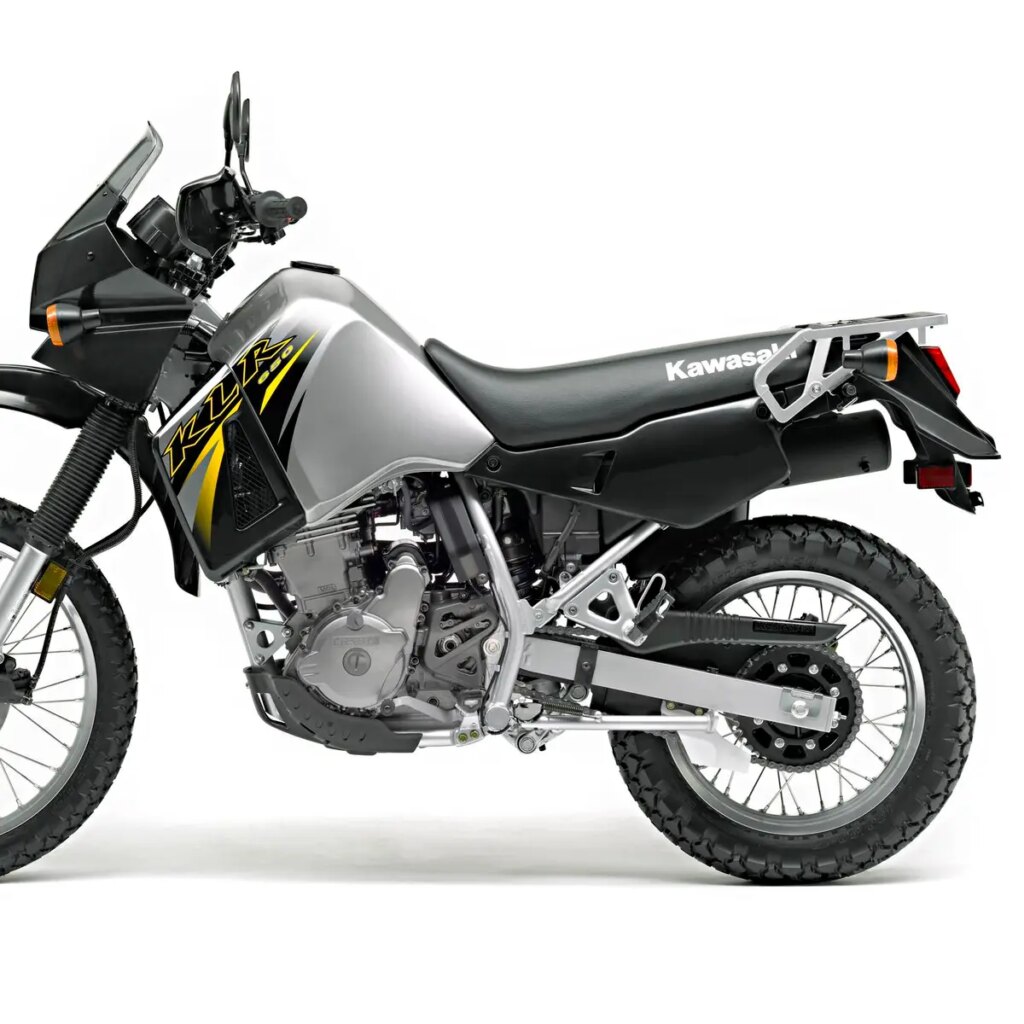

2006 Kawasaki KLR 650 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Kawasaki KLR 650.

Basic Specs

Year2006
MakeKawasaki
ModelKawasaki KLR 650
CostUS$ 5199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement651.00 ccm (39.72 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingCarburettor. Keihin CVK40
IgnitionElectronic CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.08 litres (6.10 gallons)
Emissions

Chassis

Frame Type
Rake28.0°
Trail
Front Suspension38mm leading axle, air-adjustable preload / 9.1 in.
Front Travel
Rear SuspensionUNI-TRAK® single-shock system with 5-way preload and 4-way rebound damping / 9.1 in.
Rear Travel
Seat
Seat Height889 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,346 mm (53.0 inches)
Total Length2,205 mm (86.8 inches)
Total Width940 mm (37.0 inches)
Ground Clearance239 mm (9.4 inches)
Wheelbase1,496 mm (58.9 inches)
Dry Weight152.9 kg (337.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-x21
Rear Tire/Tyre130/80-x17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLR 650. This Super motard model is powered by a Single cylinder, four-stroke engine with 651.00 ccm (39.72 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin CVK40 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLR 650 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-x21 and the rear is 130/80-x17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki KLR 650 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
