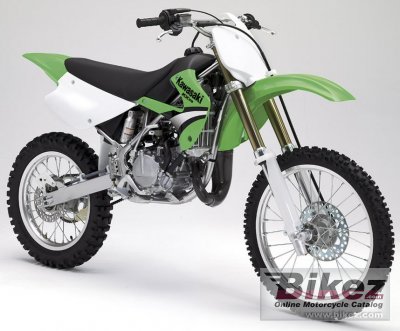

These are the known mechanical and performance specifications for your 2005 Kawasaki KX 100.
Basic Specs
Engine
Displacement99.00 ccm (6.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression9.6:1
Bore/Stroke52.5 x 45.8 mm (2.1 x 1.8 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK28
IgnitionDigital CDI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.67 litres (1.50 gallons)
Emissions
Chassis
Frame TypeHigh-tensile steel perimeter design with subframe member
Rake27.0°
Trail
Front Suspension36mm inverted telescopic cartridge fork
Front Travel274 mm (10.8 inches)
Rear SuspensionUNI-TRAK® single-shock system
Rear Travel274 mm (10.8 inches)
Seat
Seat Height871 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,105 mm (43.5 inches)
Total Length
Total Width734 mm (28.9 inches)
Ground Clearance381 mm (15.0 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight68.0 kg (149.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/90-19
Rear Tire/Tyre90/90-16
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
