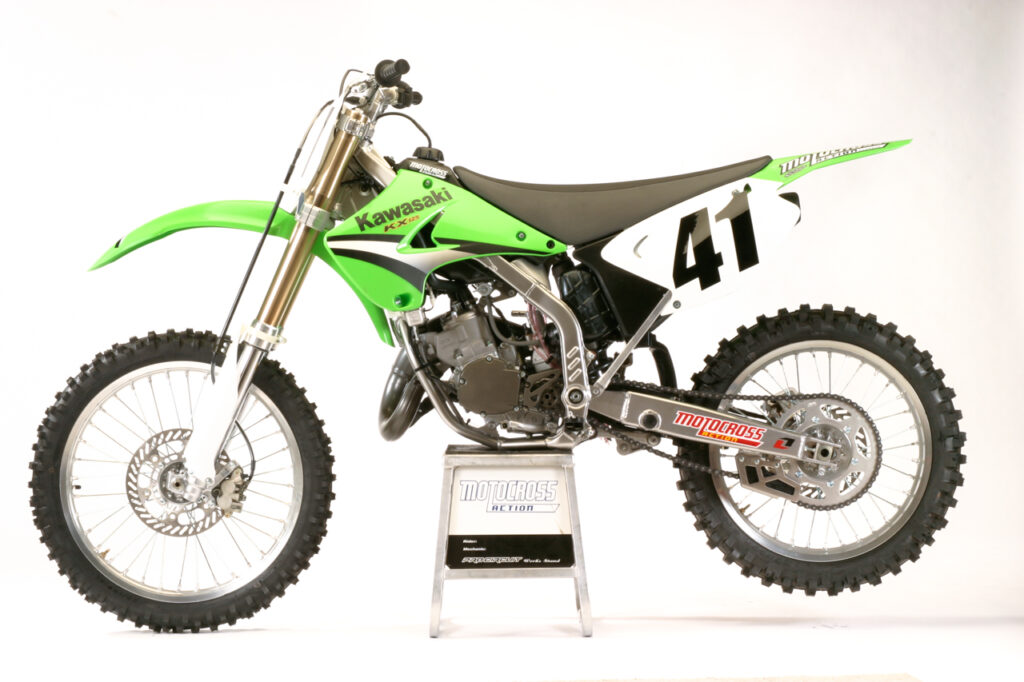

2005 Kawasaki KX 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Kawasaki KX 125.

Basic Specs

Year2005
MakeKawasaki
ModelKawasaki KX 125
CostUS$ 5099. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.1:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni TMX38x
IgnitionDigital CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity8.32 litres (2.20 gallons)
Emissions

Chassis

Frame TypePerimeter style, high-tensile steel with aluminum subframe
Rake27.0°
Trail
Front SuspensionKayaba 48mm inverted telescopic
Front Travel300 mm (11.8 inches)
Rear SuspensionUNI-TRAK® swingarm, single shock
Rear Travel310 mm (12.2 inches)
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,265 mm (49.8 inches)
Total Length
Total Width841 mm (33.1 inches)
Ground Clearance340 mm (13.4 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight87.1 kg (192.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-M21
Rear Tire/Tyre100/90-M19
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KX 125. This Cross / motocross model is powered by a Single cylinder, two-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 11.1:1 compression. Fueling is metered via Carburettor. Mikuni TMX38x allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KX 125 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/90-M21 and the rear is 100/90-M19 . The entire package is supported by the frame, Perimeter style, high-tensile steel with aluminum subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. front brakes and Single disc. Hydraulic. rear brakes. The Kawasaki KX 125 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
