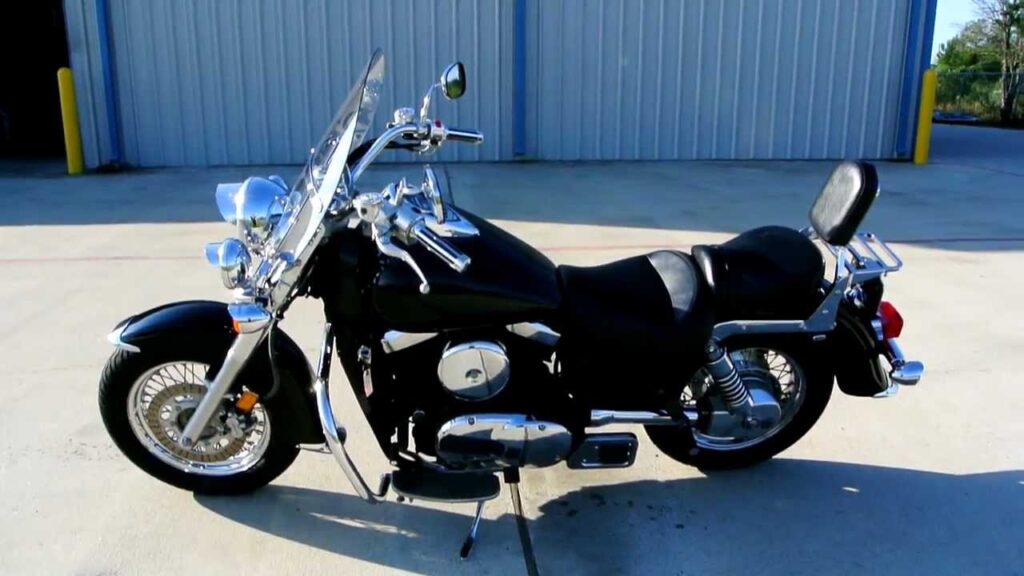

2005 Kawasaki Vulcan 1500 Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Kawasaki Vulcan 1500 Classic.

Basic Specs

Year2005
MakeKawasaki
ModelKawasaki Vulcan 1500 Classic
CostUS$ 9599. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1470.00 ccm (89.70 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.6:1
Bore/Stroke102.0 x 90.0 mm (4.0 x 3.5 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK40
IgnitionDigital with Throttle Responsive Ignition Control (K-TRIC)
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity15.89 litres (4.20 gallons)
Emissions

Chassis

Frame TypeHigh tensile steel, double cradle
Rake32.0°
Trail
Front Suspension41mm hydraulic fork
Front Travel150 mm (5.9 inches)
Rear SuspensionDual hydraulic shocks
Rear Travel86 mm (3.4 inches)
Seat
Seat Height701 mm (27.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length
Total Width965 mm (38.0 inches)
Ground Clearance124 mm (4.9 inches)
Wheelbase
Dry Weight292.1 kg (644.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 1500 Classic. This Custom / cruiser model is powered by a V2, four-stroke engine with 1470.00 ccm (89.70 cubic inches) of actual displacement before 8.6:1 compression. Fueling is metered via Carburettor. Keihin CVK40 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Vulcan 1500 Classic is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 150/80-16 . The entire package is supported by the frame, High tensile steel, double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Kawasaki Vulcan 1500 Classic was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
