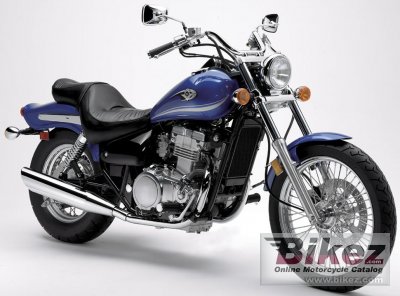

These are the known mechanical and performance specifications for your 2005 Kawasaki Vulcan 500 Ltd - EN 500 C.
Basic Specs
Year2005
MakeKawasaki
ModelKawasaki Vulcan 500 Ltd - EN 500 C
TypeCustom / cruiser
CostUS$ 4849. Prices depend on country, taxes, accessories, etc.
Engine
Displacement498.00 ccm (30.39 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke74.0 x 58.0 mm (2.9 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. Keihin CVK32 x 2
IgnitionDigital TCBI
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame TypeDouble cradle, steel
Rake33.0°
Trail
Front Suspension41mm hydraulic fork
Front Travel
Rear SuspensionDual hydraulic shocks
Rear Travel
Seat
Seat Height714 mm (28.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length
Total Width831 mm (32.7 inches)
Ground Clearance119 mm (4.7 inches)
Wheelbase1,595 mm (62.8 inches)
Dry Weight199.1 kg (439.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre140/90-15
Front BrakesSingle disc. Hydraulic
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
