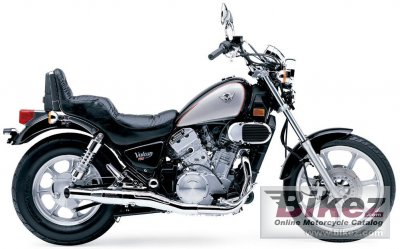

2005 Kawasaki Vulcan 750 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Kawasaki Vulcan 750.

Basic Specs

Year2005
MakeKawasaki
ModelKawasaki Vulcan 750
CostUS$ 6199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement749.00 ccm (45.70 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke84.9 x 66.2 mm (3.3 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK34 x 2
IgnitionElectronic
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.62 litres (3.60 gallons)
Emissions

Chassis

Frame TypeDouble cradle, high-tensile steel
Rake32.0°
Trail
Front SuspensionHydraulic telescopic fork
Front Travel
Rear SuspensionAir-assisted dual shocks
Rear Travel
Seat
Seat Height734 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,224 mm (48.2 inches)
Total Length
Total Width851 mm (33.5 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1,580 mm (62.2 inches)
Dry Weight219.1 kg (483.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre150/90-15
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 750. This Custom / cruiser model is powered by a Twin, four-stroke engine with 749.00 ccm (45.70 cubic inches) of actual displacement before 10.3:1 compression. Fueling is metered via Carburettor. Keihin CVK34 x 2 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Vulcan 750 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 150/90-15 . The entire package is supported by the frame, Double cradle, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Expanding brake (drum brake) rear brakes. The Kawasaki Vulcan 750 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
