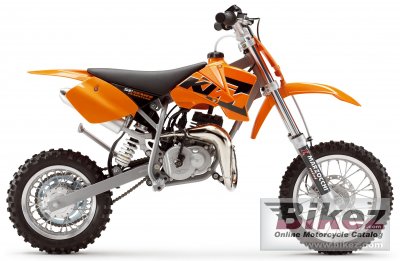

These are the known mechanical and performance specifications for your 2005 KTM 50 Senior Adventure.
Basic Specs

Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.5 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHVA 14 DS
IgnitionSeletra analogue
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox
Final DriveChain
ClutchCentrifugal clutch (adjustable)
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type frame
Rake24.0°
Trail67 mm (2.6 inches)
Front SuspensionMarzocchi
Front Travel32 mm (1.3 inches)
Rear SuspensionPaioli monoshock
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance255 mm (10.0 inches)
Wheelbase1,030 mm (40.6 inches)
Dry Weight38.4 kg (84.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter216 mm (8.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter216 mm (8.5 inches)
Wheels
