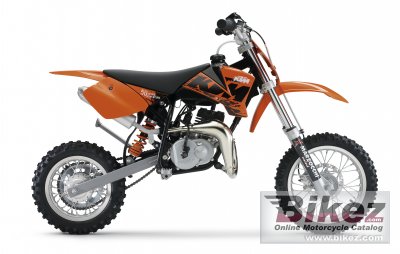

These are the known mechanical and performance specifications for your 2007 KTM 50 Senior Adventure.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.5 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHVA 14 DS
IgnitionSeletra analogue
ExhaustAluminium
Lubrication0,15 - 0,2 l Motorex ATF Super
CoolingAir
Drivetrain
Gearbox
Final DriveChain
ClutchCentrifugal clutch, adjustable
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.00 litres (0.53 gallons)
Emissions
Chassis
Frame TypeCentral double-cradle-type frame
Rake24.0°
Trail
Front SuspensionMarzocchi Ø 32 mm (1.26
Front Travel115 mm (4.5 inches)
Rear SuspensionPaioli monoshock
Rear Travel185 mm (7.3 inches)
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance255 mm (10.0 inches)
Wheelbase1,030 mm (40.6 inches)
Dry Weight38.4 kg (84.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-10
Rear Tire/Tyre2.50-10
Front BrakesExpanding brake (drum brake)
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
