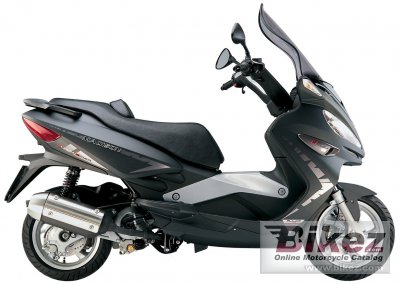

2005 Malaguti Madison 200 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Malaguti Madison 200.

Basic Specs

Year2005
MakeMalaguti
ModelMalaguti Madison 200
Cost

Engine

Displacement198.00 ccm (12.08 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke72.0 x 48.6 mm (2.8 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveBelt
Clutch
Driveline

Performance

Horespower19.44 HP (14.2 kW)
Torque17.50 Nm (1.8 kgf-m or 12.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeHigh resistance braced tubular steel frame
Rake
Trail
Front SuspensionFront suspension by hydraulic fork, ø 36 mm stanchions
Front Travel
Rear SuspensionRear suspension by swinging engine and 2 hydraulic shock absorbers
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight150.0 kg (330.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-13
Rear Tire/Tyre130/60-13
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Malaguti Madison 200. This Scooter model is powered by a Single cylinder, four-stroke engine with 198.00 ccm (12.08 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 19.44 HP (14.2 kW) horsepower and 17.50 Nm (1.8 kgf-m or 12.9 ft.lbs) torque. According to our records engine heat of the Malaguti Madison 200 is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-13 and the rear is 130/60-13 . The entire package is supported by the frame, High resistance braced tubular steel frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Malaguti Madison 200 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
