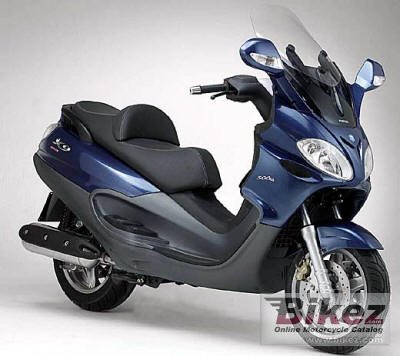

These are the known mechanical and performance specifications for your 2005 Piaggio X9 Evolution 125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke57.0 x 48.6 mm (2.2 x 1.9 inches)
Valves/Cylinder
Fueling
IgnitionElectronic CDI
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final Drive
Clutch“Twist and Go” automatic dry centrifugal type
Driveline
Performance
Horespower20.11 HP (14.7 kW)
Torque12.00 Nm (1.2 kgf-m or 8.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.20 litres (4.02 gallons)
Emissions
Chassis
Frame TypeDouble cradle, high strength steel tube
Rake
Trail
Front SuspensionTelescopic hydraulic fork, stanchions Ø 35 mm
Front Travel90 mm (3.5 inches)
Rear SuspensionTwin hydraulic shock absorbers with preload adjuster
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,130 mm (83.9 inches)
Total Width700 mm (27.6 inches)
Ground Clearance
Wheelbase1,500 mm (59.1 inches)
Dry Weight76.0 kg (167.6 pounds)
Wet Weight179.0 kg (394.6 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-14
Rear Tire/Tyre140/60-14
Front BrakesDouble disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
