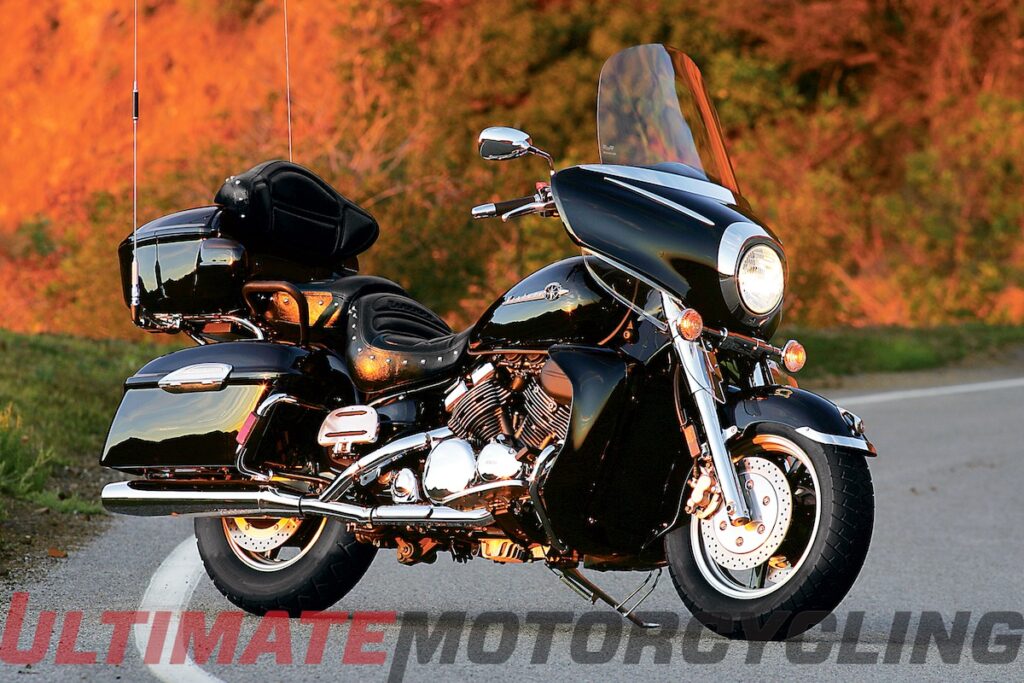

These are the known mechanical and performance specifications for your 2005 Yamaha Royal Star Midnight Venture 1300.
Basic Specs
Year2005
MakeYamaha
ModelYamaha Royal Star Midnight Venture 1300
TypeTouring
CostUS$ 16999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1294.00 ccm (78.96 cubic inches)
Type
DetailsV4, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke79.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity22.71 litres (6.00 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic fork w/air assist
Front Travel142 mm (5.6 inches)
Rear SuspensionSingle shock, link-type w/air assist;.
Rear Travel104 mm (4.1 inches)
Seat
Seat Height749 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,552 mm (61.1 inches)
Total Length2,654 mm (104.5 inches)
Total Width899 mm (35.4 inches)
Ground Clearance
Wheelbase1,704 mm (67.1 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre150/80-16
Rear Tire/Tyre150/90-15
Front BrakesDouble disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter320 mm (12.6 inches)
Wheels
Comments
