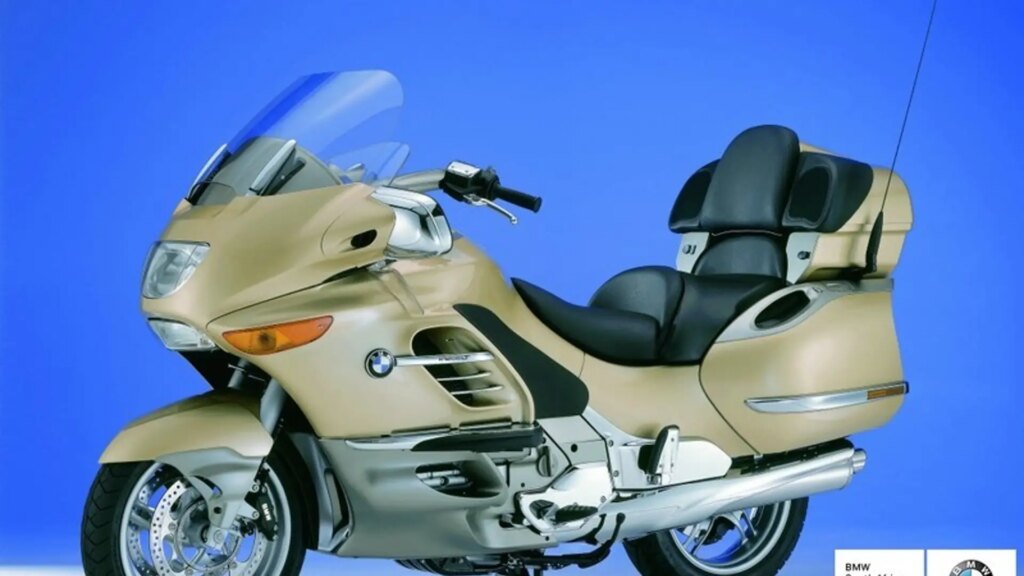

These are the known mechanical and performance specifications for your 2006 BMW K 1200 LT.
Basic Specs
Engine
Displacement1171.00 ccm (71.45 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke70.5 x 75.0 mm (2.8 x 3.0 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection / BMW engine management, Motronic MA 2.4 with overrun fuel cut-off
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline
Performance
Horespower113.98 HP (83.2 kW)
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Fuel Capacity24.00 litres (6.34 gallons)
Emissions99.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeBridge-type frame, die-cast aluminium, engine decoupled from vibrations through bearings
Rake27.0°
Trail117 mm (4.6 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel35 mm (1.4 inches)
Rear SuspensionDie-cast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,395 mm (54.9 inches)
Total Length2,502 mm (98.5 inches)
Total Width1,080 mm (42.5 inches)
Ground Clearance
Wheelbase1,637 mm (64.4 inches)
Dry Weight353.5 kg (779.3 pounds)
Wet Weight387.0 kg (853.2 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/70-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter285 mm (11.2 inches)
Wheels
