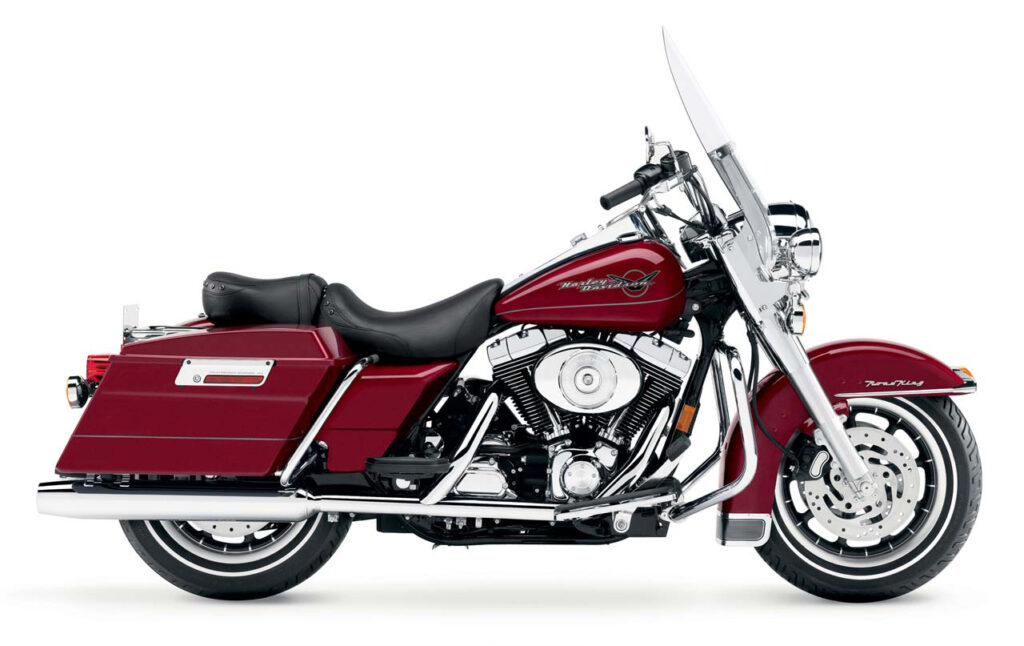

2006 Harley-Davidson FLHRI Road King Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Harley-Davidson FLHRI Road King.

Basic Specs

Year2006
MakeHarley-Davidson
ModelHarley-Davidson FLHRI Road King
CostUS$ 16995. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1442.15 ccm (88.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, cross-over duals
Lubrication
Cooling

Drivetrain

Gearbox5-speed
Final DriveBelt
ClutchMulti-plate clutch with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque116.61 Nm (11.9 kgf-m or 86.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.92 litres (5.00 gallons)
Emissions

Chassis

Frame Type
Rake26.0°
Trail157 mm (6.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height704 mm (27.7 inches) If adjustable, lowest setting.
Alt. Seat Height744 mm (29.3 inches) If adjustable, highest setting.
Total Height
Total Length2,380 mm (93.7 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight327.9 kg (723.0 pounds)
Wet Weight342.0 kg (754.0 pounds)

Wheels & Brakes

Front Tire/TyreMT90-B16
Rear Tire/TyreMu85-B16
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHRI Road King. This Custom / cruiser model is powered by a V2, four-stroke engine with 1442.15 ccm (88.00 cubic inches) of actual displacement before 8.9:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 116.61 Nm (11.9 kgf-m or 86.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHRI Road King is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is MT90-B16 and the rear is Mu85-B16 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Harley-Davidson FLHRI Road King was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Large Hiawatha headlight and chrome nacelle. Black powder-coated engine with chrome covers. Detachable windshield. GTX-nylon alloy lockable hard saddlebags. Large, tank-mounted speedometer.
