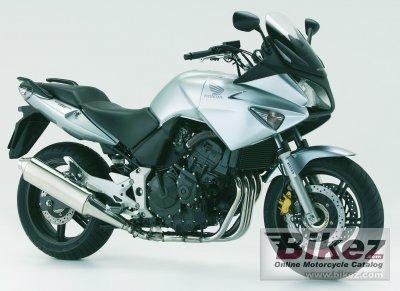

2006 Honda CBF 600 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda CBF 600 S.

Basic Specs

Year2006
MakeHonda
ModelHonda CBF 600 S
Cost

Engine

Displacement599.90 ccm (36.61 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke65.0 x 45.2 mm (2.6 x 1.8 inches)
Valves/Cylinder4
FuelingCarburettor. 4 x 36mm slanted flat-slide CV-type
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
Driveline

Performance

Horespower76.43 HP (55.8 kW)
Torque58.00 Nm (5.9 kgf-m or 42.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame TypeMono-backbone; rectangular-section steel tube
Rake
Trail109 mm (4.3 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel116 mm (4.6 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight197.0 kg (434.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CBF 600 S. This Naked bike model is powered by a In-line four, four-stroke engine with 599.90 ccm (36.61 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Carburettor. 4 x 36mm slanted flat-slide CV-type allowing this machine to produce its 76.43 HP (55.8 kW) horsepower and 58.00 Nm (5.9 kgf-m or 42.8 ft.lbs) torque. According to our records engine heat of the Honda CBF 600 S is moderated by . You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, Mono-backbone; rectangular-section steel tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda CBF 600 S was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
