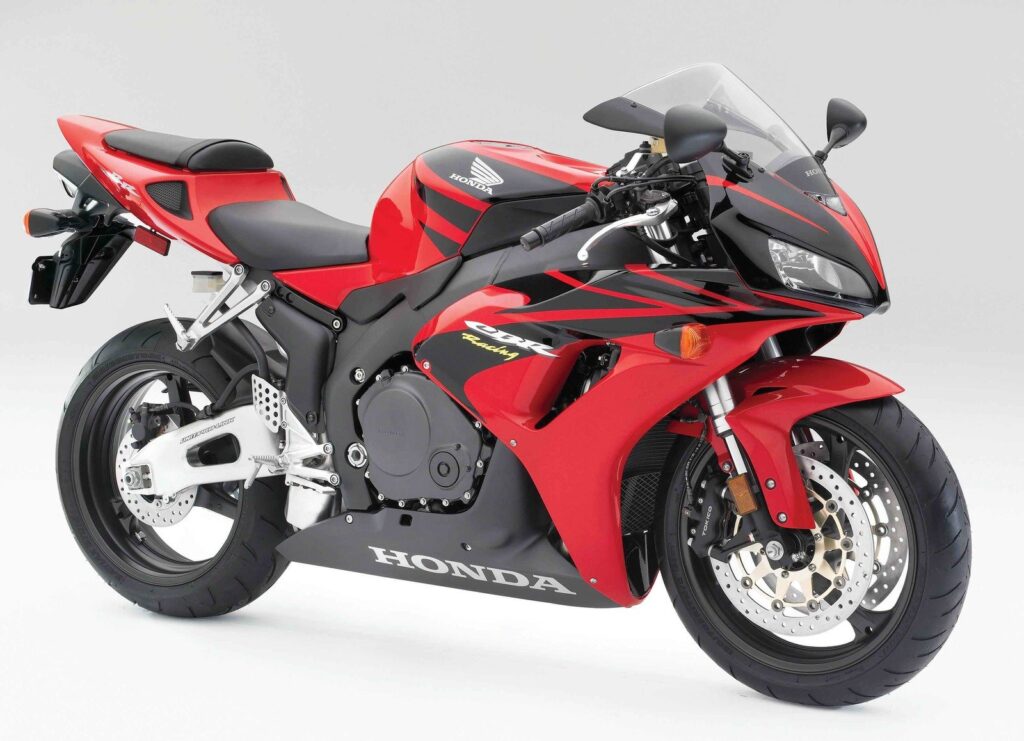

2006 Honda CBR 1000 RR Fireblade Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda CBR 1000 RR Fireblade.

Basic Specs

Year2006
MakeHonda
ModelHonda CBR 1000 RR Fireblade
TypeSport
CostUS$ 11299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement998.00 ccm (60.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke75.0 x 56.5 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. Dual Stage Fuel Injection (DSFI)
IgnitionComputer-controlled digital transistorized with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
Driveline

Performance

Horespower169.50 HP (123.7 kW)
Torque114.50 Nm (11.7 kgf-m or 84.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions

Chassis

Frame TypeDiamond. Aluminium composite twin-spar.
Rake23.5°
Trail100 mm (3.9 inches)
Front Suspension43.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability
Front Travel119 mm (4.7 inches)
Rear SuspensionHMAS Pro-Link single shock with spring-preload, rebound and compression-damping adjustability
Rear Travel135 mm (5.3 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,160 mm (85.0 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,402 mm (55.2 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CBR 1000 RR Fireblade. This Sport model is powered by a In-line four, four-stroke engine with 998.00 ccm (60.90 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. Dual Stage Fuel Injection (DSFI) allowing this machine to produce its 169.50 HP (123.7 kW) horsepower and 114.50 Nm (11.7 kgf-m or 84.5 ft.lbs) torque. According to our records engine heat of the Honda CBR 1000 RR Fireblade is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, Diamond. Aluminium composite twin-spar.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda CBR 1000 RR Fireblade was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CBR1000RR
