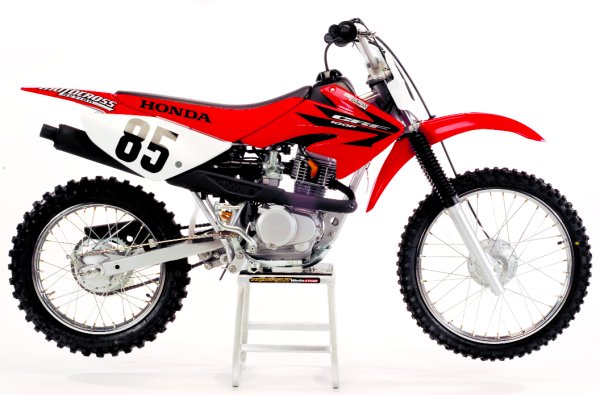

These are the known mechanical and performance specifications for your 2006 Honda CRF 100 F.
Basic Specs


Year2006
MakeHonda
ModelHonda CRF 100 F
TypeEnduro / offroad
CostUS$ 2319. Prices depend on country, taxes, accessories, etc.
Engine
Displacement99.00 ccm (6.04 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.4:1
Bore/Stroke53.0 x 45.0 mm (2.1 x 1.8 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin 37.0 mm flat-slide with throttle position sensor
IgnitionCD
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.67 litres (1.50 gallons)
Emissions
Chassis
Frame Type
Rake28.5°
Trail99 mm (3.9 inches)
Front Suspension27.0 mm leading-axle Showa fork
Front Travel132 mm (5.2 inches)
Rear SuspensionPro-Link Showa single shock
Rear Travel147 mm (5.8 inches)
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance254 mm (10.0 inches)
Wheelbase1,250 mm (49.2 inches)
Dry Weight74.8 kg (165.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/70-19
Rear Tire/Tyre90/90-16
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: CRF100F
