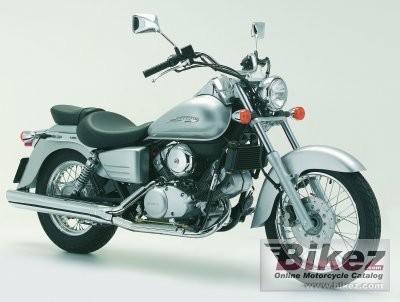

These are the known mechanical and performance specifications for your 2006 Honda Shadow 125.
Basic Specs
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke42.0 x 45.0 mm (1.7 x 1.8 inches)
Valves/Cylinder
Fueling
IgnitionDual digital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveChain
ClutchWet, multiplate with coil springs
Driveline
Performance
Horespower14.75 HP (10.8 kW)
Torque10.50 Nm (1.1 kgf-m or 7.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.50 litres (3.83 gallons)
Emissions
Chassis
Frame Type
Rake
Trail122 mm (4.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance145 mm (5.7 inches)
Wheelbase1,530 mm (60.2 inches)
Dry Weight146.0 kg (321.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
