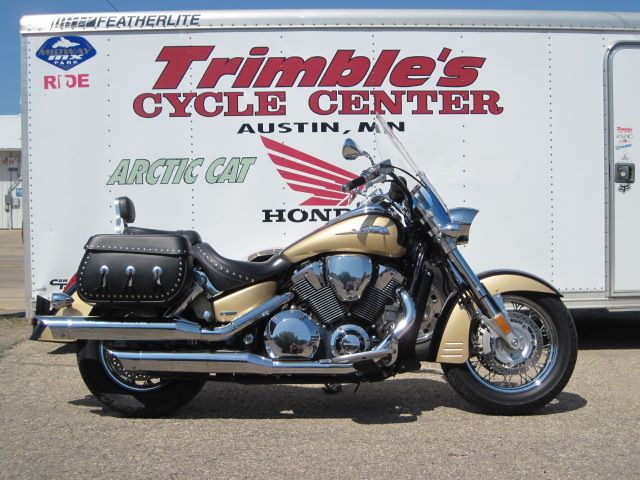

2006 Honda VTX 1800S Classic Cruiser Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda VTX 1800S Classic Cruiser.

Basic Specs

Year2006
MakeHonda
ModelHonda VTX 1800S Classic Cruiser
Cost

Engine

Displacement1795.00 ccm (109.53 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke101.0 x 112.0 mm (4.0 x 4.4 inches)
Valves/Cylinder3
FuelingInjection. Programmed Fuel Injection (PGM-FI) with automatic choke
IgnitionDigital, 2-spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame Type
Rake32.0°
Trail163 mm (6.4 inches)
Front Suspension45 mm inverted fork
Front Travel130 mm (5.1 inches)
Rear SuspensionDual shocks with 5-position spring-preload adjustability
Rear Travel99 mm (3.9 inches)
Seat
Seat Height696 mm (27.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,715 mm (67.5 inches)
Dry Weight340.2 kg (750.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre150/80-17
Rear Tire/Tyre180/70-15
Front BrakesDouble disc. Dual 296 mm discs with LBS 3-piston calipers
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Single 316 mm disc with LBS 2-piston caliper
Rear Brake Diameter316 mm (12.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VTX 1800S Classic Cruiser. This Classic model is powered by a Twin, four-stroke engine with 1795.00 ccm (109.53 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI) with automatic choke allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda VTX 1800S Classic Cruiser is moderated by Liquid. You'll need to get familiar with the transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 150/80-17 and the rear is 180/70-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual 296 mm discs with LBS 3-piston calipers front brakes and Single disc. Single 316 mm disc with LBS 2-piston caliper rear brakes. The Honda VTX 1800S Classic Cruiser was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
